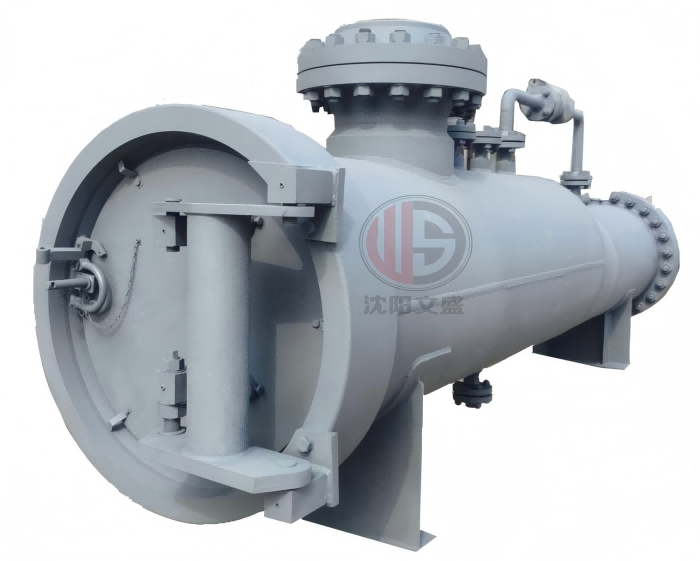

Asme Pig Launcher
Customized Materials, Design code, Size as per the client's working condition and requirements.
Provided ASME U Stamp and Inspection solution
Each pig launcher and pig receiver welded with our quick opening closure. Different type and size QOC will be provided according to the pig trap details ,and we have professional ASME qualified welder wewhich solve any problem of welding or installation.
- WS
- Shenyang,Liaoning,China
- within the required time
- supply qualified goods within required time
- Information

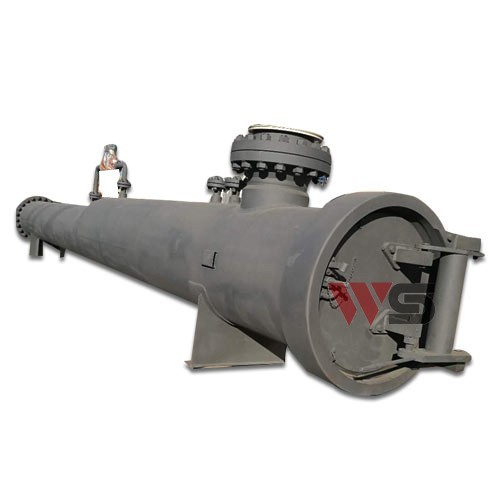

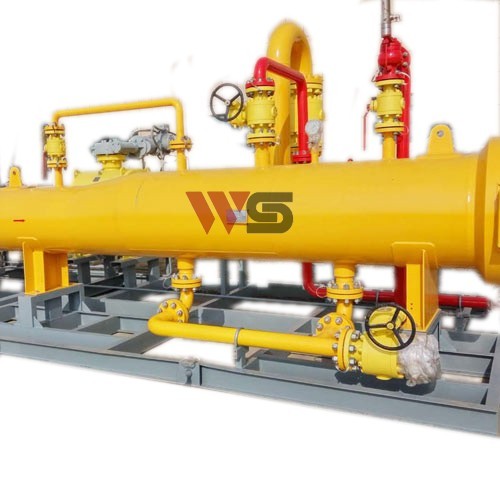

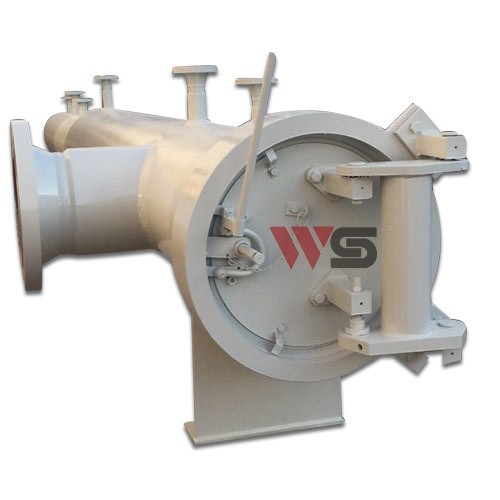

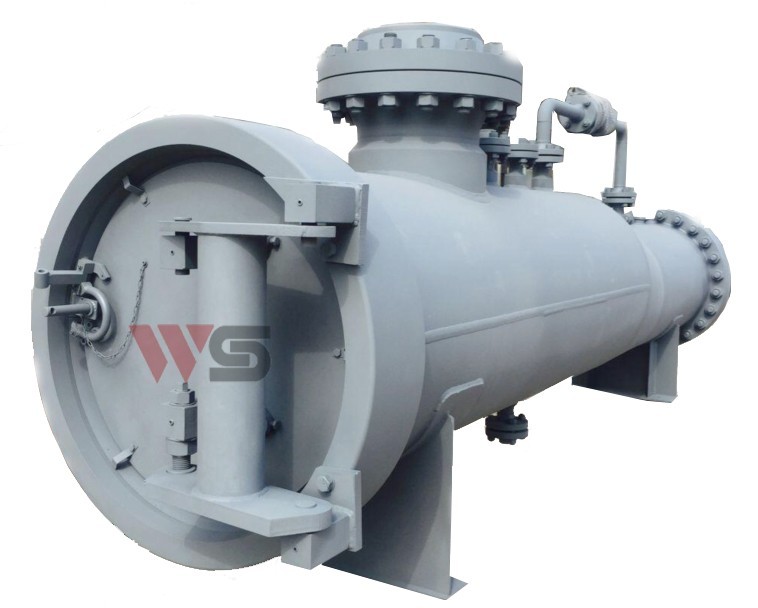

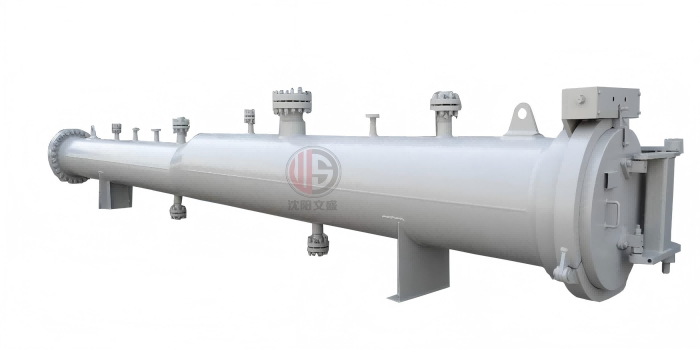

ASME Pig Launcher Device

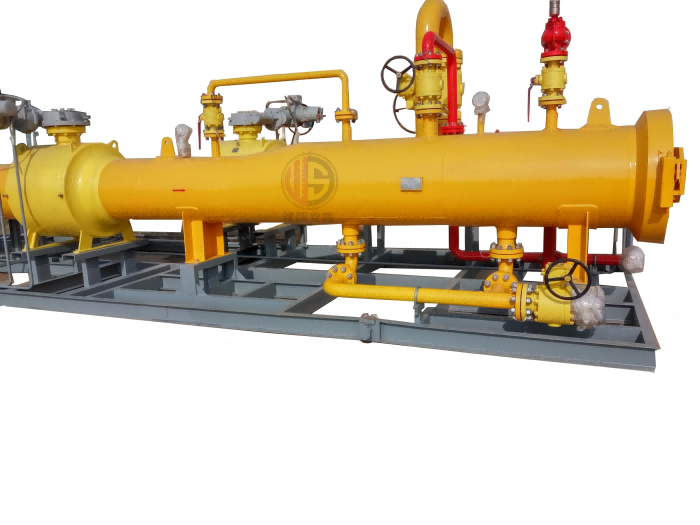

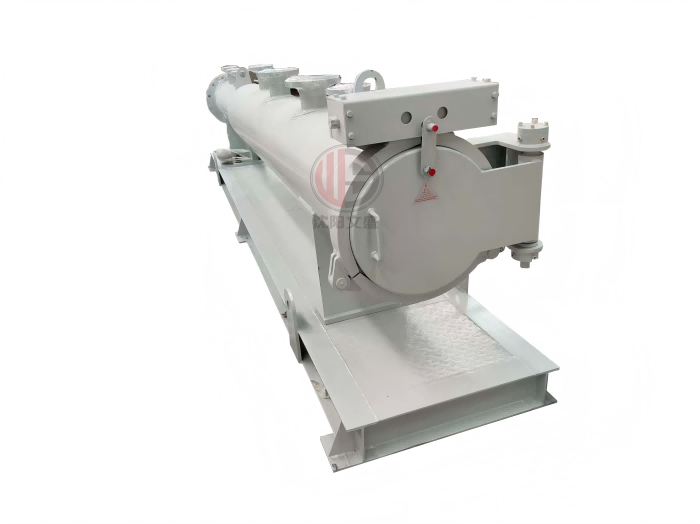

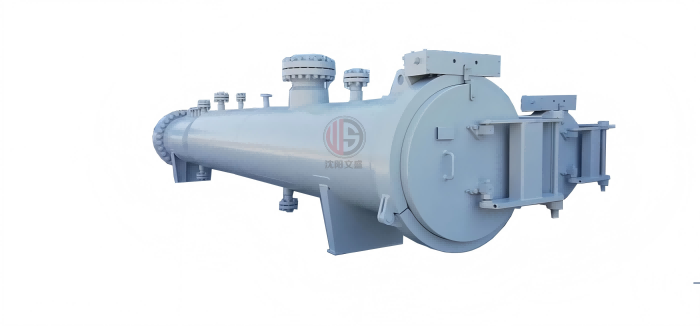

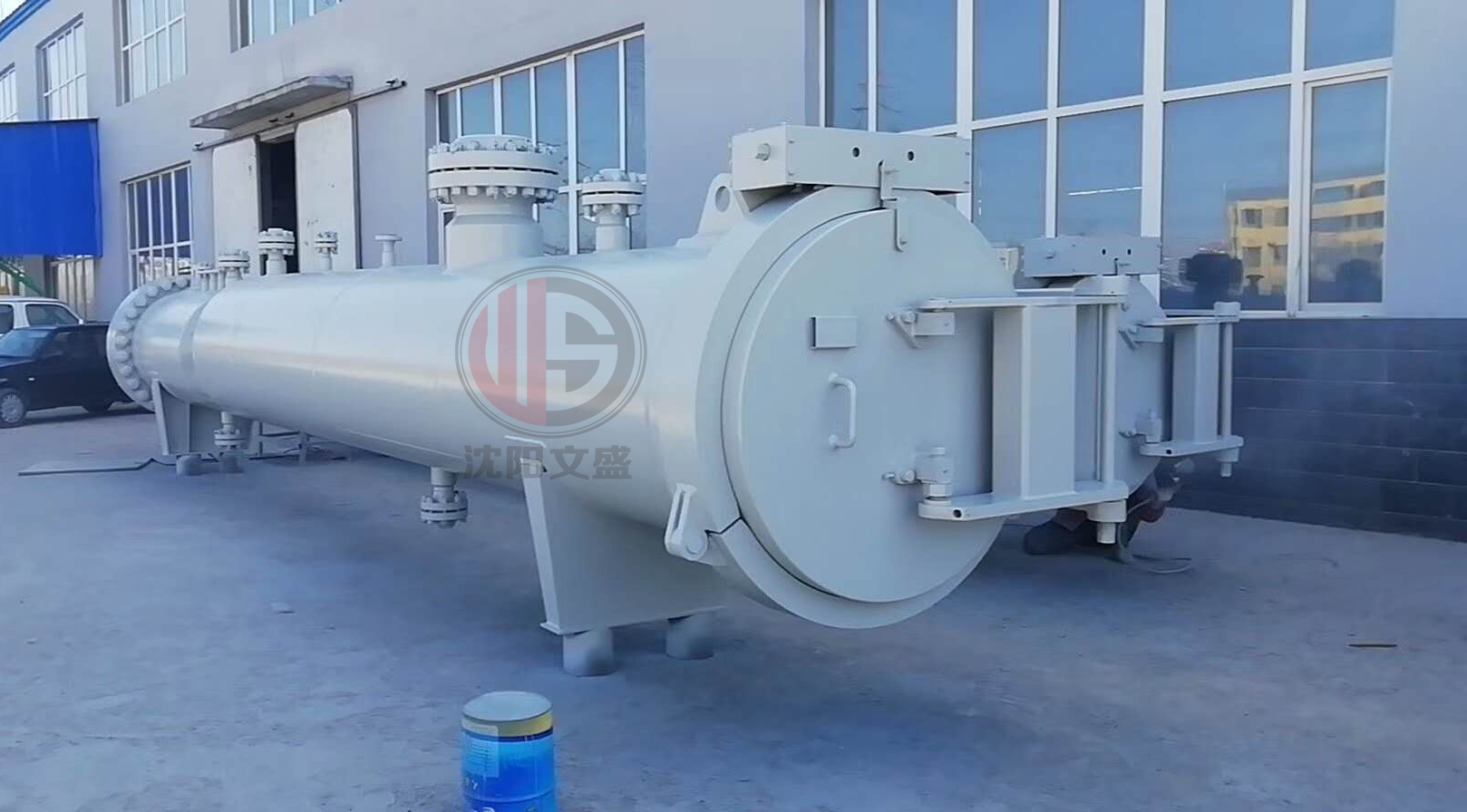

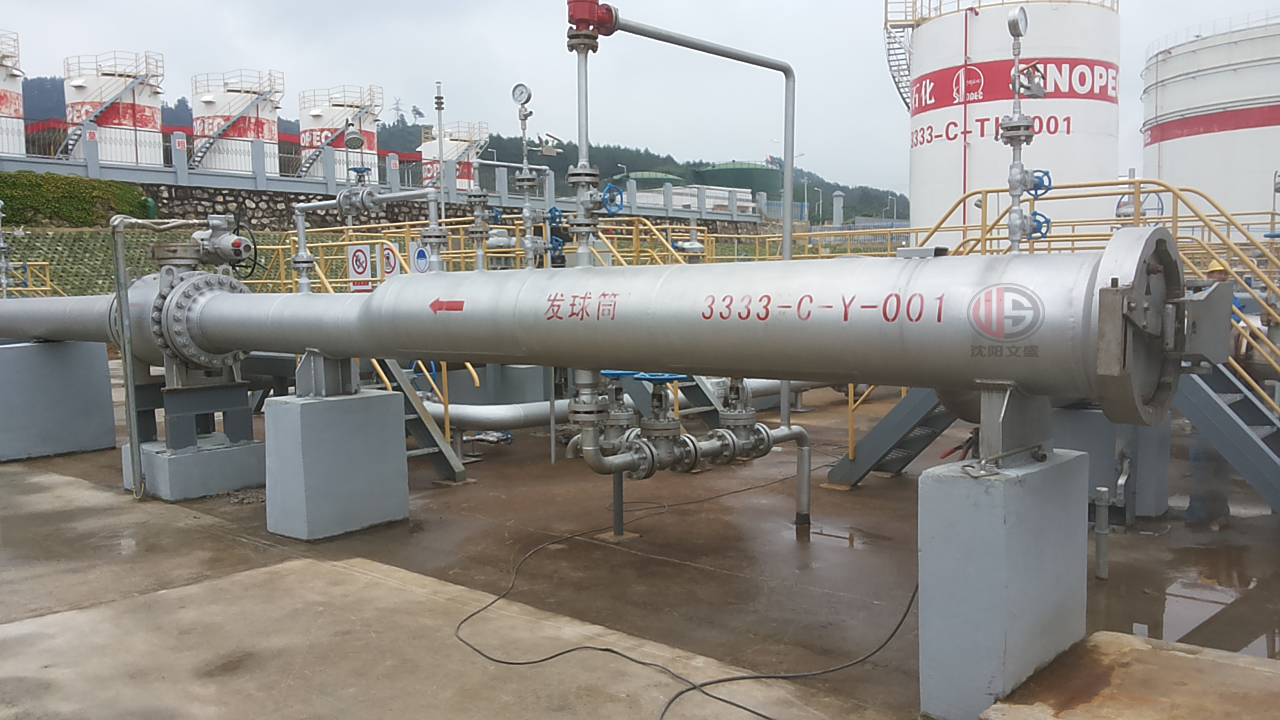

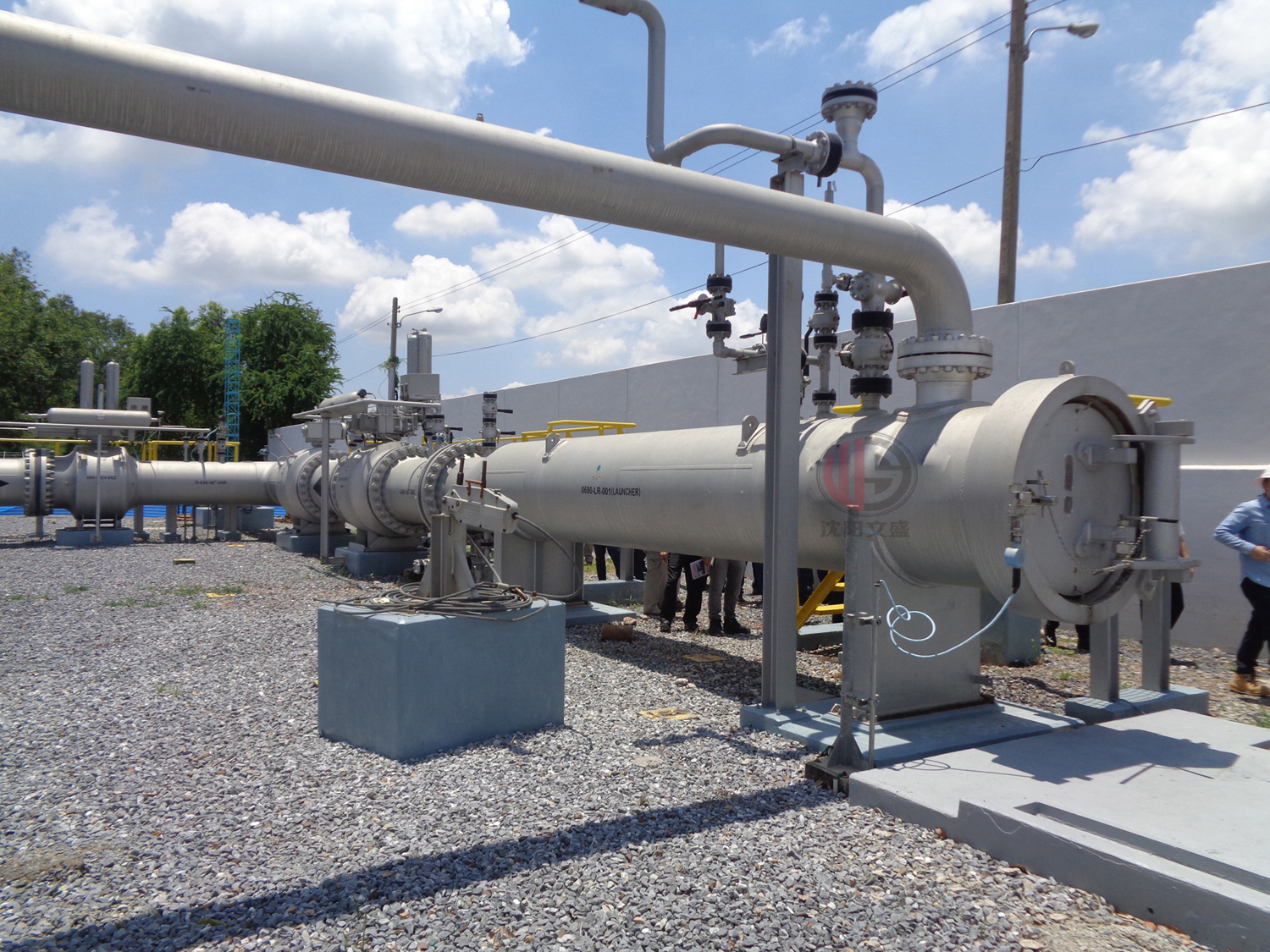

1.Pictures
2.Define
Pig launcher and receiver traps are custom manufacturerd for sub-sea,off-shore and onshore
applications. Pig launcher is used to launch the pig into the pipeline,and pig receiver is used
to receive the pig after they have made a successful launching.
A launcher is located at the upstream end of the pipeline to launch the pig into the pipeline;
A receiver is located at the downstream end of the pipeline to remove the pig from the pipeline.
The choice of these traps will depend on the type pf pig to be run and pipeline design conditions.
3.Typical Launcher and Receiver Configuration
4.Pig Launcher and Receiver Standard Features
A main body or barrel for pig storing
A quick opening closure for inserting or removing the pigs.manually or motor operated(electric,hydranlic or pnenmatic)
A tube end for connecting the trap to the pipeline
Fluid by-pass nozzle for pig motion control
Minor fitting nozzles for pressure and temperature gauges safety valves,drains ,vents etc.
Saddles or equivalent supports
5.Our Pig Launcher and Receiver Optional Features
Materials: ASTM Material or other specified material API 5L X52,60,70 Etc
Spare Parts:NPT vent, Drain,Pressure Gauge,Pig signaler connections
Various kinds of Quick opening closure to Choose for Different working condition:
Band locking QOC;
lsm wheel Paddle QOC;
Triple Clamp QOC;
Threaded QOC;
Sealing Ring:Alternate Elastomer seals to suit various applications
Additional Ancillary connections:
Support legs or skirt
Lifting Lugs for installation
weld neck flanged connections
Paiting:As per client's requirements
6.Structure Drawing---Launcher

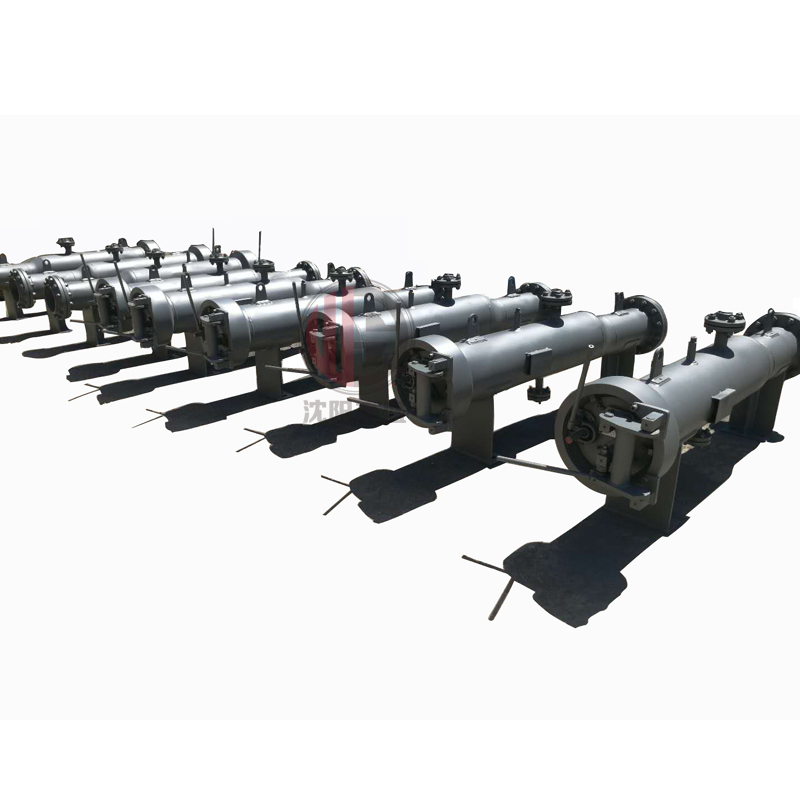

7.Dimensions--Launchers
Pipeline Diamenter Size | A | B | C | E | F | H | J | K | L | M | N | P | Q | S | R | ф | |||
D1 | D2 | D3 | D4 | ||||||||||||||||
ф108 | ф133 | ф108 | ф160 | 1400 | 550 | 2" | 1/2" | 2" | 100 | 150 | 200 | 900 | 280 | 180 | 100 | 60 | 100 | 2-R8 | 2-ф16 |
ф114 | ф141 | ф114 | ф180 | 1400 | 550 | 2" | 1/2" | 2" | 100 | 150 | 200 | 900 | 280 | 180 | 100 | 60 | 100 | 2-R8 | 2-ф16 |
ф159 | ф219 | ф159 | ф280 | 1600 | 700 | 2" | 1/2" | 2" | 100 | 150 | 200 | 1050 | 330 | 250 | 150 | 75 | 120 | 2-R10 | 2-ф20 |
ф219 | ф273 | ф219 | ф330 | 1700 | 770 | 2" | 1/2" | 2" | 100 | 150 | 200 | 1120 | 370 | 250 | 150 | 75 | 120 | 2-R10 | 2-ф20 |
ф273 | ф325 | ф273 | ф400 | 1800 | 800 | 2" | 1/2" | 2" | 100 | 200 | 200 | 1200 | 380 | 300 | 200 | 75 | 120 | 2-R10 | 2-ф20 |
ф325 | ф377 | ф325 | ф440 | 2100 | 1000 | 2" | 1/2" | 2" | 150 | 300 | 200 | 1500 | 400 | 350 | 250 | 85 | 150 | 2-R10 | 2-ф20 |
ф377 | ф426 | ф377 | ф490 | 2300 | 1100 | 2" | 1/2" | 2" | 160 | 320 | 200 | 1700 | 430 | 350 | 250 | 85 | 150 | 2-R11 | 2-ф22 |
ф426 | ф529 | ф426 | ф590 | 2700 | 1400 | 2" | 1/2" | 2" | 160 | 340 | 250 | 2050 | 480 | 500 | 380 | 85 | 150 | 2-R11 | 2-ф22 |
ф529 | ф630 | ф529 | ф690 | 3000 | 1450 | 2" | 1/2" | 2" | 160 | 450 | 280 | 2220 | 570 | 600 | 500 | 90 | 160 | 2-R12 | 2-ф24 |
ф630 | ф720 | ф630 | ф780 | 3500 | 1500 | 2" | 1/2" | 4" | 160 | 540 | 280 | 2680 | 620 | 700 | 580 | 90 | 160 | 2-R12 | 2-ф24 |
ф720 | ф820 | ф720 | ф880 | 3700 | 1600 | 2" | 1/2" | 4" | 160 | 640 | 280 | 2780 | 670 | 800 | 680 | 90 | 160 | 2-R14 | 2-ф28 |
ф820 | ф920 | ф820 | ф1000 | 4000 | 1750 | 2" | 1/2" | 4" | 160 | 700 | 280 | 3200 | 720 | 900 | 780 | 90 | 160 | 2-R16 | 2-ф32 |
