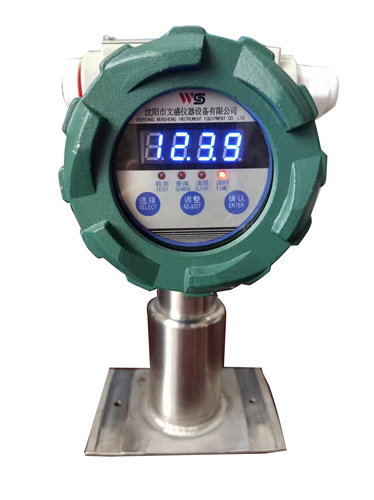

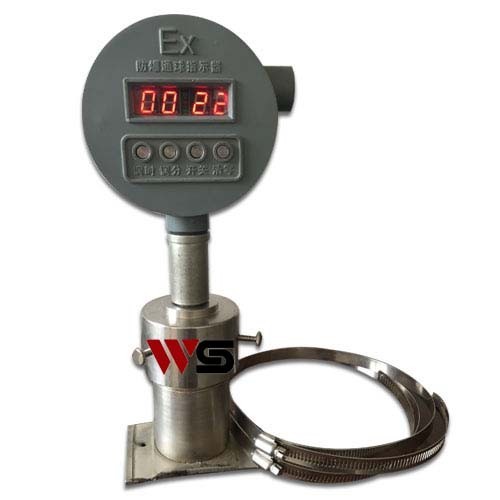

Non-intrusive Magnetic Pig Signaller
Portable Non-intrusive Magnetic pig signaller
24V/Battry power capability to detec any pig moving between 0.01 and 20 meters per second with Permanent Magnet.
Easily bands to pipelines from 6 in. to 36 in.
- WS
- Shenyang,Liaoning,China
- within the required time
- supply qualified goods within required time
- Information
Define.
To provide quick and easy non-intrusive pig passage detection of any pig moving between 0.01 and 20 meters per second. non-intrusive means less maintenance and corrosion and no possibilities of pipeline leaks.
Features
The characteristic of non-intrusive magnetic pig signaller is no any contact with the pipe fluid during the using.without the requirements of tapping in the line but only install it on the outside of the pipe .It through the electromagnetic induction and permanent magnets inside the pig receipt the signal and through a cable to signal remote transmission. its safe and convenient to use.
| Specification | ||||||
| Transmission Medium： | Oil Gas Water | |||||
| Explosive-proof Grade： | ExdⅡBT6 | |||||
| IP Grade： | IP65 | |||||
| Installation Methods： | Detachable clamp installation | |||||
| remote control signal/ contact capacity： | 24VDC/3A | |||||
| Remote control signal duration： | 5S | |||||
| Far eastone interface： | 1/2NPT,M20*1.5 | |||||
| pipeline requirements | All conveying pipeline | |||||
| Applicable Temperature | "-40～100℃。 | |||||
| Important Tips | ||||||
our non-intrusive magnetic pig indicator provide permanent magnets for cleaning pig (Cleaning Pig must with magnetic source.)and also other accessories such as fixed belt, clamp etc. | ||||||
| FAQ | |||||||||||
| 1.What the size supports? | |||||||||||
| we are the non-standard pressure vessel manufacturer, we can customize any specification as your drawing,general information | |||||||||||
| 2.What the standard of fabrication of pressure vessel? | |||||||||||
| ASME,API or any other specific appointed standard | |||||||||||
| 3.What the regular payment methods? | |||||||||||
| we support TT,Letter of Credit | |||||||||||
| 4.What the regular Package? | |||||||||||
| Export wooden case Package | |||||||||||
| 5.Which kinds of shipment supports? | |||||||||||
| By sea, airplane or International express | |||||||||||
| 6.Working Time? | |||||||||||
| we are working from Monday to Friday 8:00AM to 16:30PM |
