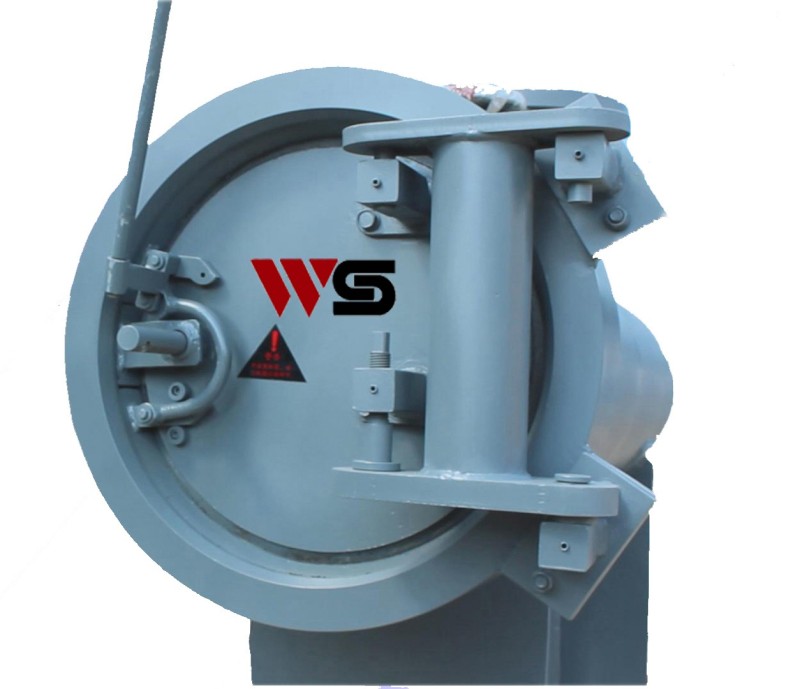

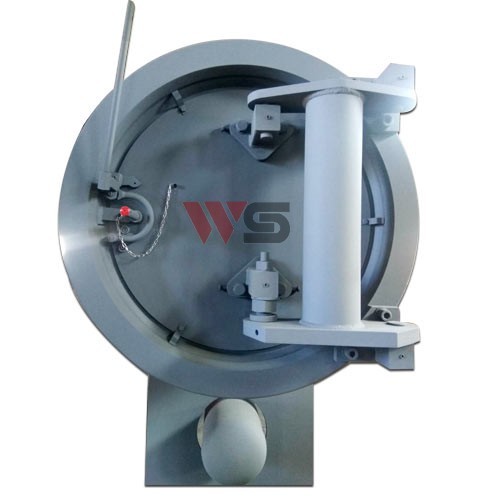

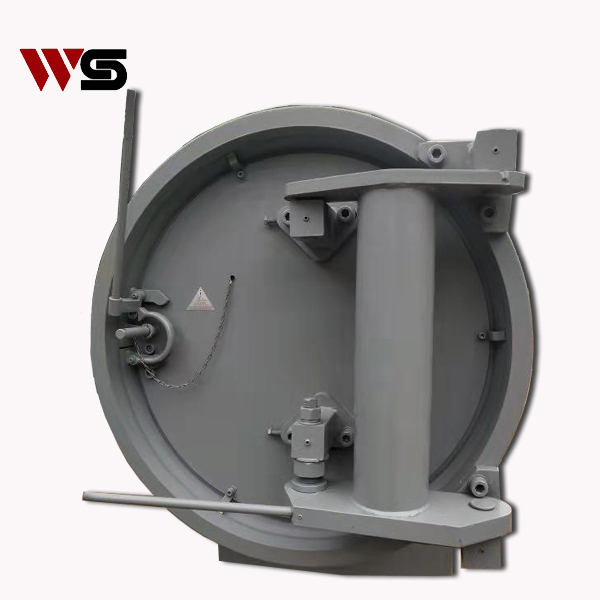

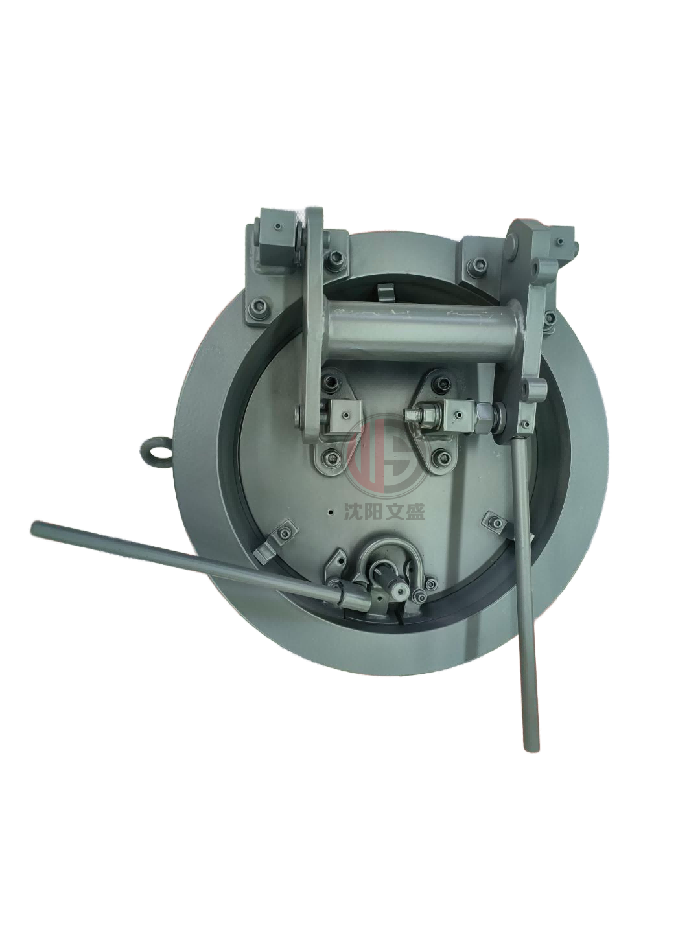

ASME Band Locking Quick Opening Closure
WS band locking quick opening closure can open any vertial or horizontal type pressure vessel in very short few minutes.
Compared with other QOC its can operate safely. Without any special tools can open or close any specification vessel within 1 minute .
Safety. -- Built to meet all the international codes and key operator specifications. Robust components to avoid damage caused by misuse. Upto three levels of safety interlock to avoid opening under pressure.
Speed and simplicity of opening and closing.
Ease of maintenance.--Designed for ease of maintenance,using a simple lip seal arrangement
- WS
- Shenyang,Liaoning,China
- within the required time
- delivery goods as per the client's required quality and quantity on time
- Information
Quick Opening Closure Pictures

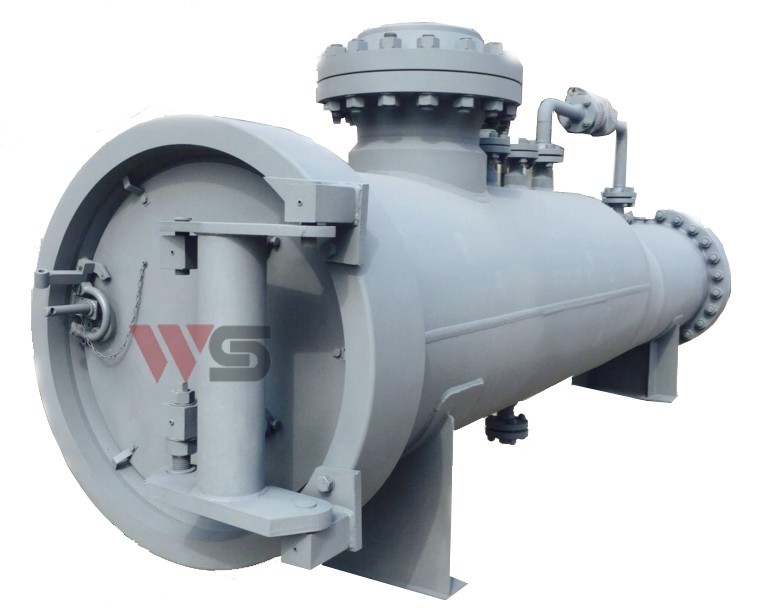

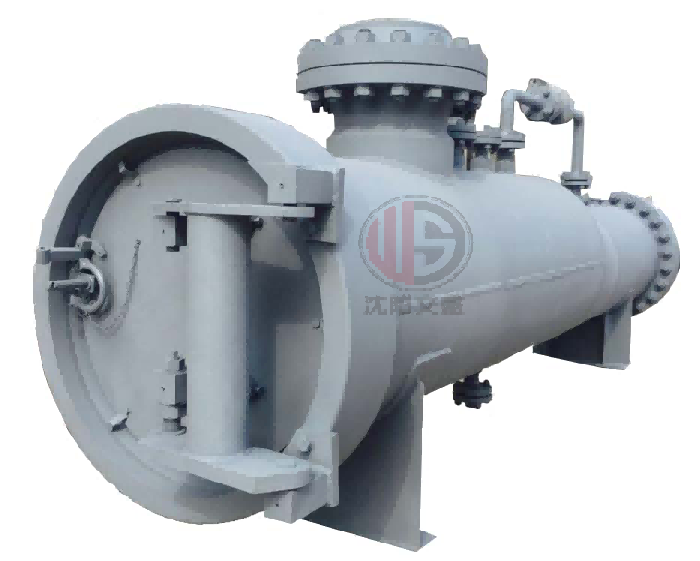

Horizontal Type Band locking QOC

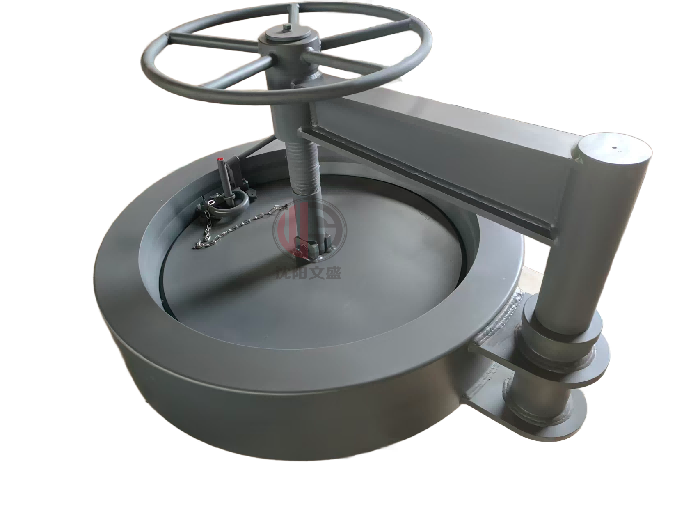

Vertical Type Bank Locking QOC
Define of QOC
Band locking Quick opening closure as its integral scalable locking ring structure ,compare with other type quick opening closure, its shorten the time of the opening and closing,only a person .
With less than 200N force to easily finish in one minute.
With unique self-tightening type lip seal structure make the sealing more safe and reliable.
With safety lock system has self-locking function.
When the equipment before booster, fast-opening blind and the locking structure on the scheduled operating parts can all lock, if not to reserve lock position, the equipment can't booster, when the equipment after unloading, before blind flange cover open , can completely make the container inner pressure relief, all realize the secondary pressure relief, to avoid the safety problems due to wrong operation.
| ●ASME Band Locking Type Quick Opening Closure | ||||
●ASME Triple Clamp Type Quick Opening Closure http://www.wsyqworld.com/product/asme-triple-clamp-quick-opening-closure | |||||
●ASME LSM Wheel Paddle Type Quick Opening Closure http://www.wsyqworld.com/product/asme-lsm-wheel-paddle-quick-opening-closure | |||||
●ASME Threaded Type Quick Opening Closure http://www.wsyqworld.com/product/asme-threaded-quick-opening-closure | |||||
●ASME airpowered automatic quick opening closure http://www.wsyqworld.com/product/asme-airpowered-automatic-quick-opening-closure | |||||
●ASME hydraumatic automatic quick opening closure http://www.wsyqworld.com/product/asme-hydraumatic-automatic-quick-opening-closure | |||||
WS Main type
Structure of QOC
Advantages of WS Band locking QOC
WS band Locking quick opening closure can be designed to open any special equipment within 1 minute as usual.
WS band locking quick opening closure can open any vertial or horizontal type pressure vessel in very short few minutes. Compared with other QOC its can operate safely. Without any special tools can open or close any specification vessel within 1 minute .
Safety. -- Built to meet all the international codes and key operator specifications. Robust components to avoid damage caused by misuse. Upto three levels of safety interlock to avoid opening under pressure.
Speed and simplicity of opening and closing.
Ease of maintenance.--Designed for ease of maintenance,using a simple lip seal arrangement
Maintenance Notice of WS Band Locking QOC
Take away the sealing ring from groove, and confirm sealing groove have not damage.
Take away old sealing ring and clean up the sealing groove, and then smear some grease.
Press sealing ring into the top groove and ensure sealing placed in center of groove, and then press the sealing ring into groove symmetrically.
| Material Character | ●Metal Material. The quick opening closure main pressured parts materials taken always do as per buyer's requirements such as ASTM material. | |||||
| ●Sealing Material. Taken Weathering fluorine rubber / nitrile rubber | ||||||
| General Technical Data | Our quick opening closure designed according to ASME Ⅷ Div.1 , Through finite element stress analysis and structural optimization by ANSYS.The main compression components use overall forgingsand low alloy high strength carbon steel etc. | |||||
| General Design Data | ●Diameter :DN 100MM To 2000MM | |||||
| ●Design Pressure:1MPa To 40MPa | ||||||
| ●Working Medium: Oil, water,gas, Chemical | ||||||
| ●Design Tempearature:-50℃ To 200℃ | ||||||
| ●Wall Thickness:6mm To 100mm | ||||||
| Application | ● Oil、Nature gas pipeline | |||||
| ●Pig launcher/receiver | ||||||
| ●various kinds of filter separator, cyclone separator. | ||||||
| ●Autoclave, curing tank | ||||||
| ●Various kinds of pressure vessel | ||||||

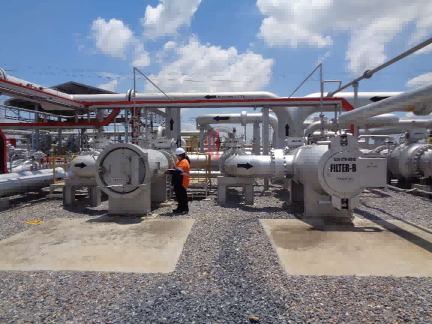

Our Project Site Picture
FAQ:
| 1Q | The quick opening closure with ASME U Stamp? |
| 1A | we are ASME authorized manufacturer and can provide U Stamp if required. |
| 2Q | What the MOQ of quick opening closure? |
| 2A | 1 SET |
| 3Q | what the standard package of quick opening closure? |
| 3A | Standard export wooden case.If need other specific requirements,please feel free to contact us. |
| 4Q | what the brand of quick opening closure? |
| 4A | our brand is WS |
| 5Q | What the shipment of QOC? |
| 5A | we support shipment by air,sea ,train or international express as your's requirements. |
| 6Q | The QOC apply for what kinds of pressure vessel? |
| 6A | It can be used for pig launcher/receiver, filter separator, diesel tank and any other pressure vessel.we will provide installation technical supports if required. |
| 7Q | u can quote FOB or C&F price? |
| 7A | we can quote based on FOB china port and CRF price as your required |
Company Information
Shenyang WenSheng Instrument Equipment Co., Ltd.is the Joint-stock collection of production and scientific research in one .we are the professional manufacturing enterprises of oil and natural gas pipeline (non-standard) equipment more than 15 years. | ||||||||
we focus on petroleum, natural gas pipeline (non-standard) equipment research, development and production in decade years.We provide our customers in the worldwide with full set of pigging equipment for long distance transferring pipeline;monolithic insulation joint, gas Distribution and filter separation & cyclone separation equipments and the perfect Pre/After Sales services include business consulting, equipment configuration, installation debugging, technical training , spare parts supply and expert guidance etc. | ||||||||
our products are much more perfect with the accumulation of experience and the feedback from customers in the process of the usage of equipment and the improvement of technique after hard technical research and study .The main technical Index and performance have reached to the advanced domestic and international standard. | ||||||||
Our products won several national patents like LSM wheel paddle Quick Opening Closure (National patent number: zl 2016 2 0079375.6),Band locking Quick Opening Closure(National patent number: zl2016 2 1187766.6),Electric Automatic Quick Opening Closure (National patent number: zl2016 2 1191754.0) the supporting wheel pipeline polyurethane cleaning pig (National patent number: zl2016 2 1189950.4) , and the reducing pipeline cleaning pig (National patent number: zl2016 2 1187652.1)；Pig Signaller removal under pressure(National patent number:zl2016 2 1172897.7) etc. | ||||||||
Our company have got ASME U Certificate( Certificate No.:55405);ISO9001:2000 Certificate; ISO14001:2000 Certificate and ISO OHSAS 18001:2007) etc..... |
