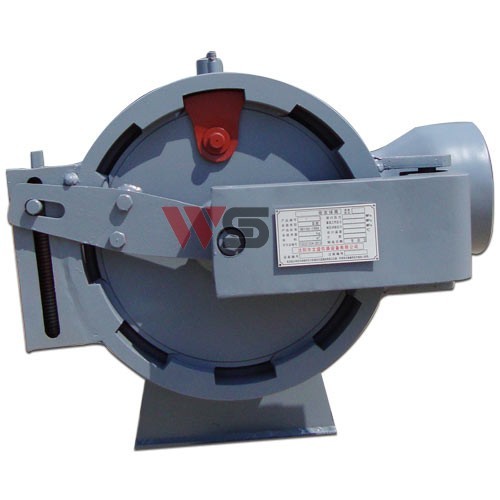

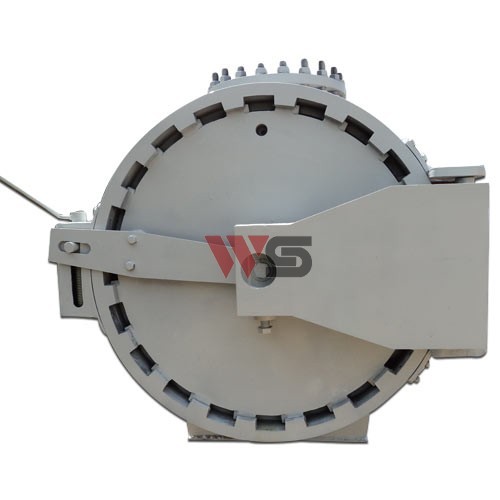

ASME LSM Wheel Paddle Type Quick Opening Closure

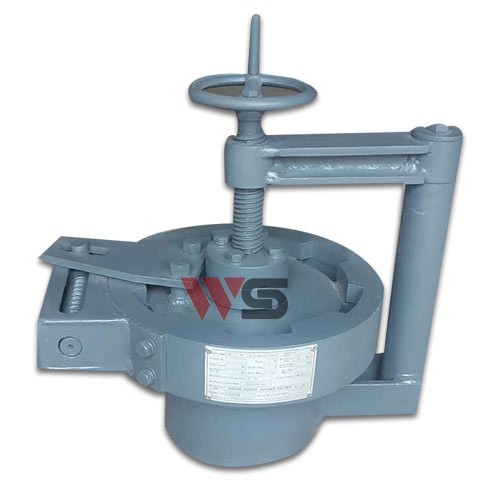

1)ASME Horizontal Type Quick Opening Closure

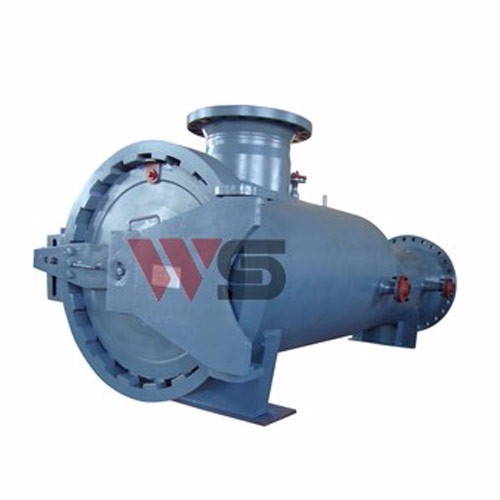

2)ASME Vertical Type Quick Opening Closure
Define of ASME LSM Wheel Paddle Type Quick Opening Closure
LSM type wheel paddle sealing and level-moving quick opening closure is our Exclusive patent products .
Its made of coaxial double plate( outside plate is snap-gauge; the inside plate is blind-plate).
Through lead screw transmission turns the snap-gauge rotating and push blind-plate translational forward to extrude sealing rings to reach the purpose of sealing.
LSM wheel paddle QOC Technical performance
1.It has the function of safety interlocking. When the Quick Opening Closure closed, the safety interlocking can realize positioning.
When the Quick Opening Closure opens, the safety interlocking can realize secondary pressure relief.
2.Protect sealing ring. Taking coaxial double structure, Between the sealing ring and sealing surface without relative rotation. the sealing ring is not easy to damage.
the sealing surface is not easy wear by impurities.
3.Locking Takes multisurface structure . when locking can realize the action, translational contacts and uniform strength. meanwhile, Increasing the occlusal contact areas.
The cover and base of blind-plate osslusal contact areas 90% larger than contact size.
4.Using long lead screw transmission. Short time and Flexible characteries of opening and closing.
5.Simple structure. Quick and convenient when open or close. Using LSM structure ensures one operator can open blind plate within one minutes without any special tools.
its safe, convenient and no any leakge.
LSM Quick Opening Closure Drawing
Material Character
●Metal Material. The quick opening closure main pressured parts materials taken always do as per buyer's requirements such as ASTM material.
●Sealing Material. Taken Weathering fluorine rubber / nitrile rubber
General Technical Data
Our quick opening closure designed according to ASME Ⅷ Div.1 , Through finite element stress analysis and structural optimization by ANSYS.
The main compression components use overall forgingsand low alloy high strength carbon steel etc.
General Design Data
●Diameter :DN 100MM To 2000MM
●Design Pressure:1MPa To 40MPa
●Working Medium: Oil, water,gas, Chemical
●Design Tempearature:-50℃ To 200℃
●Wall Thickness:6mm To 100mm
Application
● Oil、Nature gas pipeline
●Pig launcher/receiver
●various kinds of filter separator, cyclone separator.
●Autoclave, curing tank
●Various kinds of pressure vessel
| FAQ: | |
| 1 | The quick opening closure with ASME U Stamp? |
| we are ASME authorized manufacturer and can provide U Stamp if required. | |
| 2 | What the MOQ of quick opening closure |
| 1 set | |
| 3 | what the standard package of quick opening closure? |
| Standard export wooden case | |
| 4 | what the brand of quick opening closure? |
| ws brand | |
| 5 | What the shipment of QOC? |
| we support shipment by air,sea ,train or international express as your's requirements. | |
| 6 | The QOC apply for what kinds of pressure vessel? |
| It can used for pig launcher/receiver, filter separator, diesel tank and any other pressure vessel. | |
| 7 | u can quote FOB or C&F price? |
| we can quote based on FOB china port and CRF price |
