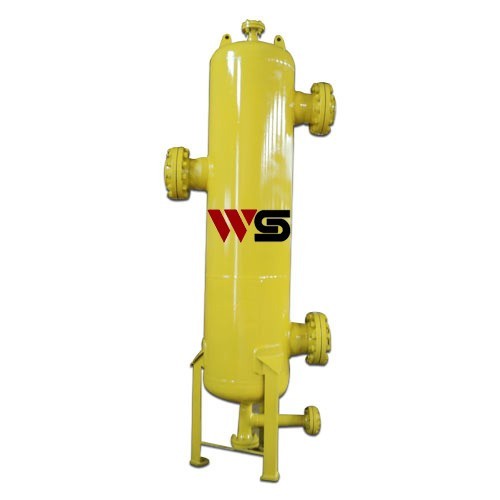

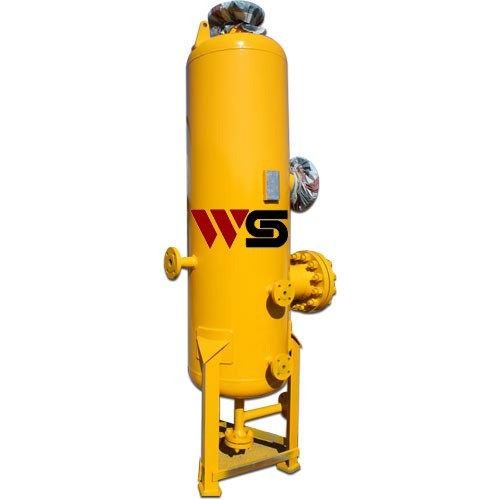

ASME Cyclone Separator
- WS
- Shenyang,Liaoning,China
- within the required time
- supply qualified goods within required time
- Information
Define
Cyclone Separator is a kind of dust equipment used for removing suspended solids for a long time in the covening gas. Cyclone separator in the application of pipeline engineering solved the pipeline gas of the dust,fog's influence on the transmission and use of the work.Setting the separator in the front-end of filter In the process design , It can greatly improve the whole process of the pipeline transmission precision and efficiency. Meanhwile,it also can improve the service life of pipeline.Its connected Cyclone centrifugal separation, filtration separation technologies etc as one which widely used in the separation of gas, liquid and gas, solid separation of the mixture.
|
Working principle
Cyclone separation as an important equipment in natural gas, petroleum,chemical industry, coal-fired power plants and environmental protection and other fields have been widely used.It uses principle of gravity settling,centrifugal sedimentation to isolate solid, liquid impurities and fine dust particles from air flow. When entrained solids and gases from one tangent direction of the droplets into the cyclone, the gas can rotate on high speed along the wall and downward to the bottom as spiral motion according to the spiral path.when reach to the bottom then upward as the The inner topspin airflow.Finally the gas out from the outlet of separator into the pipeline. |
| Configurations and Materials | ||||
| Main Shell | ASTM Materials | |||
| Cyclone Tube | S.S | |||
| Vane Mist Extractor | Used imported raw materials | |||
| our cyclone separator specification | ||||
| 1.6-25Mpa | ||||
| "-20 - +800 °C | ||||
| 5 µm | ||||
| Separator Efficiency | ||||||||
| Separator Efficiency (According to the Quality percentage) | < 5 µm | 90% | ||||||
| 5-10 µm | 94% | |||||||
| 10-20µm | 95% | |||||||
| 20-40µm | 98% | |||||||
| 40-60µm | 99% | |||||||
| >60µm | 100% | |||||||
| Drawing of our cyclone separator | ||||||||
| Cyclone separator : Horizontal/Vertical Type | ||||||||
| Characters | ||||
| 1.the cyclone separator with triple separation system compared with ordinary one Higher working accuracry and better separator efficiency. | ||||
2. Main compressive Materials of cyclone separator are using ASTM MATERIALS meet the strength requirement of the board .the main nozzle uses the steel pipe flanges, sealing gasket with high temperature resistant,corrosion resistant stainless steel spiral wound gasket.sealing is reliable. | ||||
| 3.No required Maintenance | ||||
| 4.Low pressure Drop | ||||
| 5.Fabricated carbon or stainless steel construction | ||||
| 6.Flanged Drain | ||||
our cyclone separator provide excellent separate accuracy for gas convening pipeline, separating large amount solid impurity when using together with filter separator during the working process will have better function( we are professional cyclone separator and filter separator and can provide matched filter separator equipment ourselves). Under the special working condition such as chemical plants transfer chemical powder using high strength composite and High temperature resistant materias. the highest standtemperature can up to 800℃. |
| Company Information | ||||||||
| Shenyang WenSheng Instrument Equipment Co., Ltd.is the Joint-stock collection of production and scientific research in one .we are the professional manufacturing enterprises of oil and natural gas pipeline (non-standard) equipment more than 15 years. | ||||||||
| we focus on petroleum, natural gas pipeline (non-standard) equipment research, development and production in decade years.We provide our customers in the worldwide with full set of pigging equipment for long distance transferring pipeline;monolithic insulation joint, gas Distribution and filter separation & cyclone separation equipments and the perfect Pre/After Sales services include business consulting, equipment configuration, installation debugging, technical training , spare parts supply and expert guidance etc. | ||||||||
our products are much more perfect with the accumulation of experience and the feedback from customers in the process of the usage of equipment and the improvement of technique after hard technical research and study .The main technical Index and performance have reached to the advanced domestic and international standard. | ||||||||
Our products won several national patents like LSM wheel-paddle Quick Opening Closure (National patent number: zl 2016 2 0079375.6),Band locking Quick Opening Closure(National patent number: zl2016 2 1187766.6),Electric Automatic Quick Opening Closure (National patent number: zl2016 2 1191754.0) the supporting wheel pipeline polyurethane cleaning pig (National patent number: zl2016 2 1189950.4) , and the reducing pipeline cleaning pig (National patent number: zl2016 2 1187652.1).,Pig Signaller removal under pressure(National patent number:zl2016 2 1172897.7) etc. | ||||||||
Our company have got ASME U Certificate( Certificate No.:55405);ISO9001:2000 Certificate; ISO14001:2000 Certificate and ISO OHSAS 18001:2007) etc..... | ||||||||
