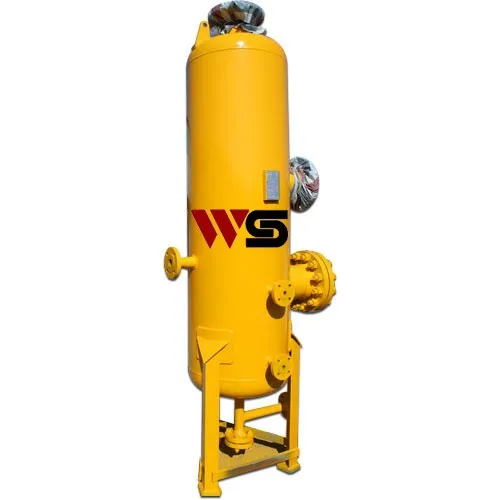

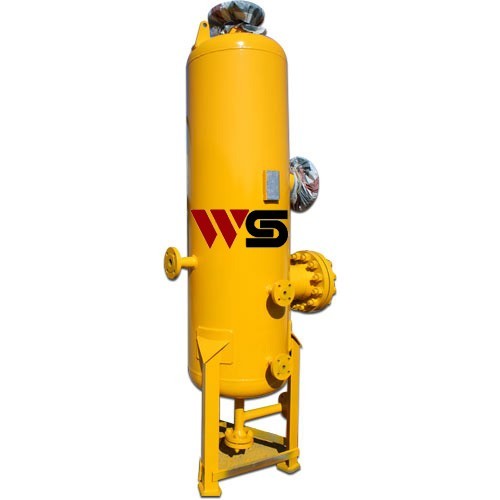

ASME Cyclone Separator Skid

Cyclone Separator is a kind of dust equipment used for removing suspended solids for a long time in the

covening gas.Cyclone separator in the application of pipeline engineering solved the pipeline gas of the dust,

 fog's influence on the transmission and use of the work.Setting the separator in the front-end of filter In the

process design , It can greatly improve the whole process of the pipeline transmission precision and

efficiency, Meanhwile,it also can improve the service life of pipeline.A cyclonic separation is a method of

 removing particulates from an air, gas or liquid stream, without the use of filters, through vortex separation.

 When removing particulate matter from liquids, a hydrocyclone is used; while from gas, a gas cyclone is

used. Rotational effects and gravity are used to separate mixtures of solids and fluids.

The method can also be used to separate fine droplets of liquid from a gaseous stream.

Cyclone separation as an important equipment in natural gas, petroleum, chemical industry, coal-fired power

plants and environmental protection and other fields have been widely used.It uses principle of gravity settling, centrifugal sedimentation to isolate solid, liquid impurities and fine dust particles from air flow.When entrained solids and gases from one tangent direction of the droplets into the cyclone, the gas can rotate on high speed along the wall and downward to the bottom as spiral motion according to the spiral path.when reach to the

bottom then upward as the The inner topspin airflow. Finally the gas out from the outlet of separator into the

pipeline.

Separator Efficiency

(According to the Quality

percentage)

2. Main compressive Materials of cyclone separator are using ASTM MATERIALS meet the strength requirement of the board .the main nozzle uses the steel pipe flanges, sealing gasket with high temperature resistant,corrosion resistant stainless steel spiral wound gasket.sealing is reliable.

Advantages

our cyclone separator provide excellent separate accuracy for gas convening pipeline, separating large amount solid impurity when using together with filter separator during the working process will have better function( we are professional cyclone separator and filter separator and can provide matched filter separator equipment ourselves).

Under the special working condition such as chemical plants transfer chemical powder using high strength composite and High temperature resistant materias. the highest standtemperature can up to 800℃.
