Brief Introduction
Diesel tank is mainly used in diesel oil storage and supply for diesel engine on electric-driven drilling rig in oil field.
It features in reasonable and compact structure, convenient operation and being adapted to many working conditions such as land, desert, and ocean.
Classify

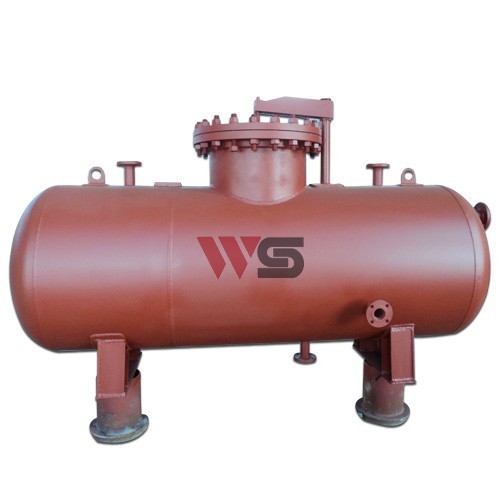

Above ground ASME diesel storage tank pressure

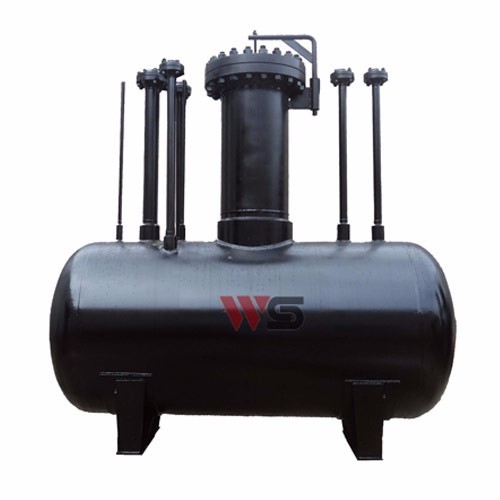

Underground ASME diesel storage tank pressure
Customize
2. Working principle and construction
| 2.1. Working principle |
| Diesel oil tank is mainly applied to diesel oil storage and supply for diesel engine on electric-driven drilling rig in oil field. After the drilling rig and oil tank are installed, diesel oil will be pumped from oil truck into oil tank by vertical pipe centrifugal pump. On the contrary, when the oil tank is transferred to another location with drilling rig, the diesel oil can also be pumped from diesel oil tank back into oil truck. There is level indicator fixed on diesel oil tank in order to know the oil storage inside. The technical process of oil pipeline is shown in attached drawing. |
| 2.2. Construction of equipment |
| The diesel oil tank system consists of vertical tank, pump station, and basement. It features in compact and centralized structure, being convenient for installation and operation, and being easy to service and maintenance. |
(1) Vertical tank: On top of the tank, there are manhole, inhaling device, and platform. At back of the tank, there are ladder and fixed level indicator in order to know the oil level inside. Pump station: The oil pump unit is installed in a pump room on the side of the skid base. There are two pumps connected in parallel, which can be able to work solely or together at the same time. The oil inlet of the pump is connected with outlet under the bottom of tank |

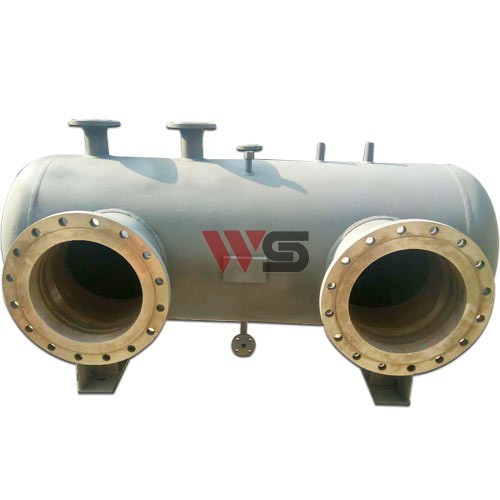

2)Horziontal Tank Its Our standard Tank type and support customize specification, materials, design pressure etc. |
| FAQ | |||||||||||
| 1.What the size supports? | |||||||||||
| we are the non-standard pressure vessel manufacturer, we can customize any specification as your drawing,general information | |||||||||||
| 2.What the standard of fabrication of pressure vessel? | |||||||||||
| ASME,API or any other specific appointed standard | |||||||||||
| 3.What the regular payment methods? | |||||||||||
| we support TT,Letter of Credit | |||||||||||
| 4.What the regular Package? | |||||||||||
| Export wooden case Package | |||||||||||
| 5.Which kinds of shipment supports? | |||||||||||
| By sea, airplane or International express | |||||||||||
| 6.Working Time? | |||||||||||
| we are working from Monday to Friday 8:00AM to 16:30PM |
