ASME Diesel Storage Tank Pressure With Skid
- WS
- Shenyang,Liaoning,China
- within the required time
- supply qualified goods within required time
- Information
Brief Introduction
Diesel tank is mainly used in diesel oil storage and supply for diesel engine on electric-driven drilling rig in oil field. It features in reasonable and compact structure, convenient operation and being adapted to many working conditions such as land, desert, and ocean.
Classify
Above ground ASME diesel storage tank pressure

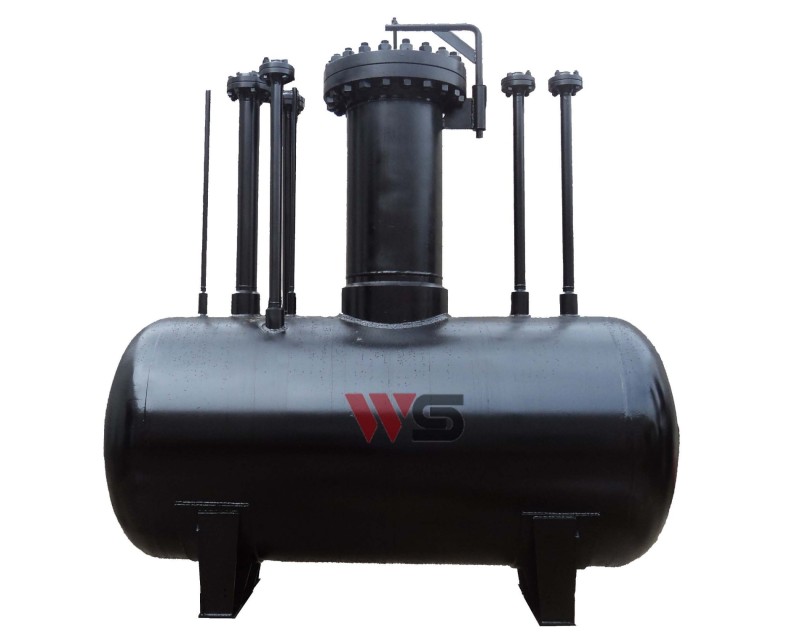

Underground ASME diesel storage tank pressure
Customize
2. Working principle and construction
2.1. Working principle
Diesel oil tank is mainly applied to diesel oil storage and supply for diesel engine on electric-driven drilling rig in oil field. After the drilling rig and oil tank are installed, diesel oil will be pumped from oil truck into oil tank by vertical pipe centrifugal pump. On the contrary, when the oil tank is transferred to another location with drilling rig, the diesel oil can also be pumped from diesel oil tank back into oil truck. There is level indicator fixed on diesel oil tank in order to know the oil storage inside. The technical process of oil pipeline is shown in attached drawing.
2.2. Construction of equipment
The diesel oil tank system consists of vertical tank, pump station, and basement. It features in compact and centralized structure, being convenient for installation and operation, and being easy to service and maintenance.
(1) Vertical tank: On top of the tank, there are manhole, inhaling device, and platform. At back of the tank, there are ladder and fixed level indicator in order to know the oil level inside.
Pump station: The oil pump unit is installed in a pump room on the side of the skid base. There are two pumps connected in parallel, which can be able to work solely or together at the same time. The oil inlet of the pump is connected with outlet under the bottom of tank

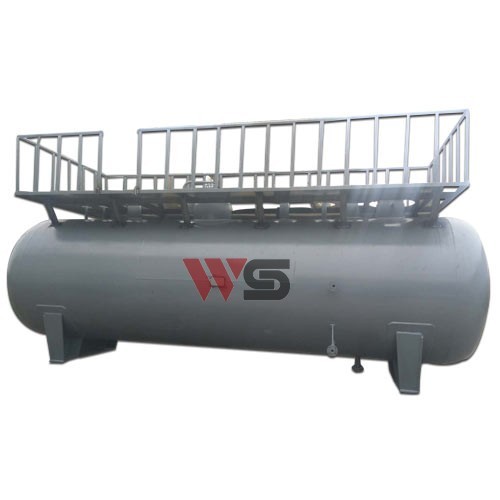

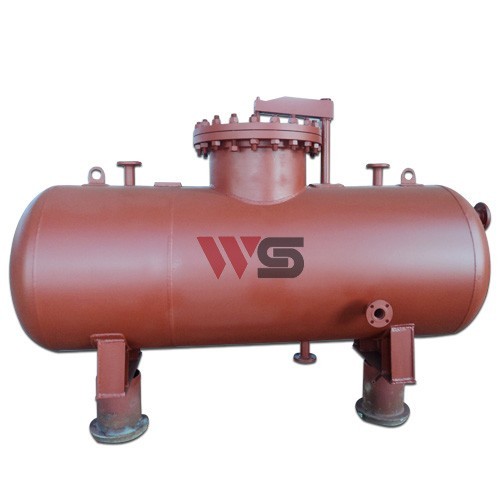

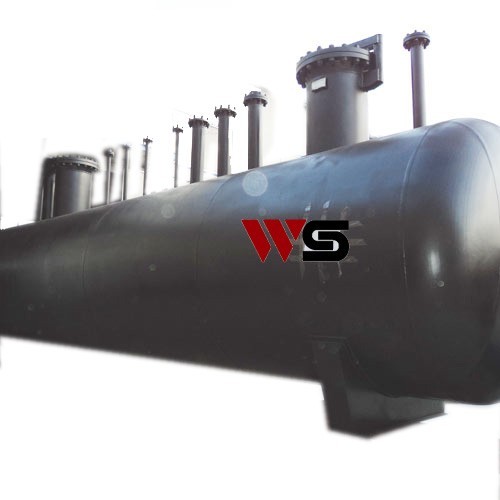

2)Horziontal Tank
Its Our standard Tank type and support customize specification, materials, design pressure etc.
3. Installation and operation
(1) The oil tank system and its connection with outside should be installed as per the flow chart of oil tank pipeline.
(2) Install power source and check if the power circuit is well installed. Check electric engine to see if the rotation direction is right through commissioning.
(3) Turn on all valves of pipeline and turn on the power.
4. Service and maintenance
(1) Check flanges of pipeline to see if oil leakage occurs. If there is leakage existed, screw down or change gaskets for flanges.
(2) Check electric circuit before turning on，so as to prevent leakage current.
(3) Keep the surface of level indicator clean, so as to watch the level of oil inside diesel tank clearly.
| FAQ | |||||||||||
| 1.What the size supports? | |||||||||||
| we are the non-standard pressure vessel manufacturer, we can customize any specification as your drawing,general information | |||||||||||
| 2.What the standard of fabrication of pressure vessel? | |||||||||||
| ASME,API or any other specific appointed standard | |||||||||||
| 3.What the regular payment methods? | |||||||||||
| we support TT,Letter of Credit | |||||||||||
| 4.What the regular Package? | |||||||||||
| Export wooden case Package | |||||||||||
| 5.Which kinds of shipment supports? | |||||||||||
| By sea, airplane or International express | |||||||||||
| 6.Working Time? | |||||||||||
| we are working from Monday to Friday 8:00AM to 16:30PM |
| Company Information | ||||||||
| Shenyang WenSheng Instrument Equipment Co., Ltd.is the Joint-stock collection of production and scientific research in one .we are the professional manufacturing enterprises of oil and natural gas pipeline (non-standard) equipment more than 15 years. | ||||||||
we focus on petroleum, natural gas pipeline (non-standard) equipment research, development and production in decade years.We provide our customers in the worldwide with full set of pigging equipment for long distance transferring pipeline;monolithic insulation joint, gas Distribution and filter separation & cyclone separation equipments and the perfect Pre/After Sales services include business consulting, equipment configuration, installation debugging, technical training ,spare parts supply and expert guidance etc. | ||||||||
our products are much more perfect with the accumulation of experience and the feedback from customers in the process of the usage of equipment and the improvement of technique after hard technical research and study .The main technical Index and performance have reached to the advanced domestic and international standard. | ||||||||
Our products won several national patents like LSM wheel-paddle Quick Opening Closure (National patent number: zl 2016 2 0079375.6), Band locking Quick Opening Closure(National patent number: zl2016 2 1187766.6),Electric Automatic Quick Opening Closure (National patent number: zl2016 2 1191754.0) the supporting wheel pipeline polyurethane cleaning pig (National patent number: zl2016 2 1189950.4) , and the reducing pipeline cleaning pig (National patent number: zl2016 2 1187652.1).,Pig Signaller removal under pressure(National patent number:zl2016 2 1172897.7) etc. | ||||||||
Our company have got ASME U Certificate( Certificate No.:55405); ISO9001:2000 Certificate; ISO14001:2000 Certificate and ISO OHSAS 18001:2007) etc..... | ||||||||
