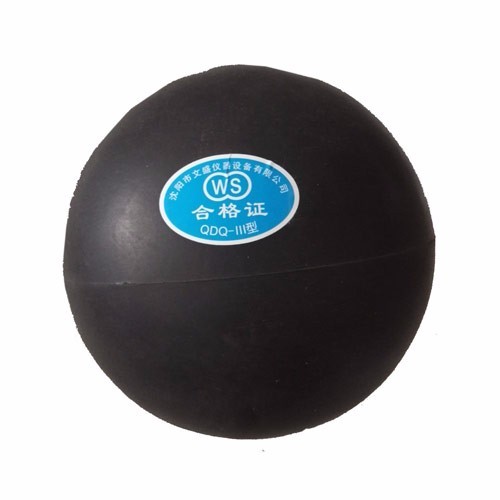

Pig Ball

Brand: WS
Product origin: Shenyang,Liaoning,China
Delivery time: within the required time
Supply capacity: supply qualified goods within required time

Information

Pig Ball Brief Introduction

Pigging ball is a kind of cleaning equipment made of neoprene(CR) , a kind of anti-corrosion materials , according to the actual demands of oil and gas fields , natural gas pipeline, such as city gas pipeline .

the purpose of the pig ball is to clean the solid and liquid impurities within the pipeline. it has two kinds : hollow ball and solid pig ball.DN50MM-133MM are solid ball,DN145MM-1016MM are hollow ball. wall thickness between 20MM-150MM.

Usage Tips

1.pig ball have specific requirements of sealing function during the operation, hence, the pig ball outer diameter must larger than pipeline inner diameter. we called the difference of pig ball outer diameter and pipeline inner diamter as amount of interference.

the amount of interference in the ball is 2% of the pipeline diameter when without water inside; 3%-5% when fulled with water.it Can make the ball against the wall from air leakage and leakage.

2.the wall thickness of Hollow ball for one over ten of the pipeline diameter, hollow ball have galls mouth and water /air filling is used inside the hollow ball.

In winter, the ball should be filling antifreeze solution (ethylene glycol),to prevent freezing.

Advantages

1.High elasticity

2.oil resistance, acid resistance, aging resistance,anti-high temperature and long working life etc,

For pipeline engineering design, construction, production and maintenance has brought great convenience and benefits.

Shortcoming and Suggestion

Pigging ball's main purpose is to clear the tube effusion and separation medium but with poor function to clear blocks.

for example, the wax deposition and rust in the pipeline are difficult to eradicate. besides,it cant carry with tracking machine.

we suggest when cleaning the similar pipeline use our polyurethane pig or FPM/PTFE pig.

the price is afforable and quality guarantee, Various kinds and size can be provided( such as cup pig,disc pig, foam pig),

According to the different pipeline condition,all the pig can be added with the extra function of tracking ,gauging, magnet to satsify the cleaning requriements of most pipeline.Especially, the FPM/PTFE pig can work in the high temperature reach to 275℃ pipeline and

chemical transferred pipeline with different acids, keeping form and anti-acid corrosion.

Neoprene technical data

working temperature	overall length	MAX stand pressure	Bending radius
~-40℃~~+120℃	1 times DN	20mPA/cm2	R<0.5DN
Hardness(Shao A)	300%stretching strength(Mpa)	tensile strength(Mpa)	Break strength(%)
90	12	50	550
tearing strength(KN/M)	Abrasion(CC/1.61)	Neoprene technical data
90	0.02
