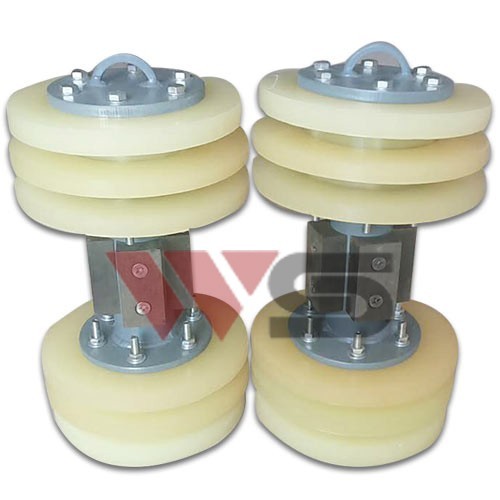

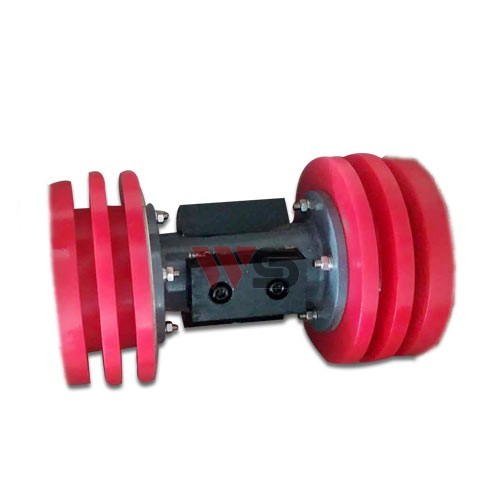

Polyurethane Magnetic Pig
Polyurethane Magnetic Pig used for cleaning pipeline full of large iron rust，impurities
| Tracking and Locating System Matached with our Pig | |
| 1)Pig tracking machine: Electronic Pig Signal Transmitter +Receiver | |
| Electronic Pig Signal Transmitter | |
| Electronic pig signal transmitter is installed on the pig body，We have Two Type Electronic Pig signal Transmitter | |
| 1) <DN250 PIG signal transmitter |  |
| 2) >DN300 PIG signal transmitter | |
| DN250 and smaller size pig is an organic whole which install inside of pig body and cant removalbe from pig. | |
| DN300 and bigger size pig signal transmitter which is removable. | |
| cleaning pig application | |
| 1.To be used for sweeping pipeline and cleaning various impurity After finished the pipe construction and pre-silicon . | |
| 2.To be Used for the exhausting gas before do the pipeline hydrostatic test and dewatering after test. | |
| 3.To check the roundness error before usage and whether the position of live ball valve and pipeline diameter are accurate after opening valve. | |
| 4.To wipe out the weld flash at the palce of joints | |
| 5.To discharge ash, remove paraffin reguarly or irregulary, descaling and do water treatment of the used oil and gas pipeline. | |
| 6.To be used as the inolator of different fluid medium during one pipeline. | |
| 7.To paint the the pipeline wall with anticorrosive coating. | |
| our cleaning pig advantages | |
The advantages of the electronic locating equipment of pipeline pigging are strong wear resistant property and passing ability,well cleaning efficiency, accurate locatingand tracking, etc. the precision can reach to plus or minus 5cm | |
we adopt the whole sealing structure for the installation of our cleaning pig battery. As the high speed in the pigging operation and severe collision,it easily cause the pig transmitter out of power and cant work. our whole sealing structure takes Rechargeable lithium batteries and have the clectrucal quantity standard to make sure the battery with enough power for supporting the transmitter to work reguarly.our battery can also avoid the humidity even water into the inner make the battery mouldy or even short circuit. |
| General Technical Data of Electronic Pig Signal Transmitter |
| 1. Material:The shell is made of stainless steel |
| 2. Max Operating Pressure≤15Mpa. |
| 3. During transmitter Electricity work It can continue to launch electric pulse signal Electronic with strong penetrating power. |
| 4. Effective launching distance>12m |
5. Signal frequency deviation<±0.1HZ. When the signal sent out,it can receive signal feedback through the ground instrument and can accurately track the location of the pig running. |
| 6. Our pig transmitter use rechargeable lithium batteries,3000mA/h Lithium battery can supply pig transmitter work 180 hours.the pig transmitter in working condition , 1/3 second is the working time , 2/3 second is the rest time, power consumption nearly 50Ma/h,it can repeatedly recharged 500 times. Through the formula to calculate:3000÷50=60×3times=180h, so our pig transmitter fully meet the requirements of working time .it has been practiced in the field of petroleum, petrochemical and other pipeline projects at home and abroad and our clients give us highly evaluation.. |
| The Electronic Positioning Receiver |
| General Technical Data of Electronic positioning receiver |
| 1.Ability to prevent shock strong. |
| 2.Within the scope of the normal reception to resist walking vibration interference and does not produce alarm display. |
| 3.Effective detecting depth（Buried distance)>8m |
| 4.Reception radius>15m |
| 5.It has the the characteristics of miniaturization and portable.Its convenient for field service. |
| 6.It With sound and light alarm display mode so that can use in the night normally. |
| 7.It using dry battery and continuous working time is more than 80 hours. |
| 8.Responding speed is greater than the 30m/s, Positional accuracy:±7c |
9. Operating mode: Suspenders type |
| Electronic through indicator satisfying the requirements of technical specification for the following and indicators. |
| 1.Having a good anti-jamming performance and wont produce false alarm signal. |
| 2.It has the larger scope of receiving and higher response speed and Won't produce signal omission phenomenon. |
| 3.Reception radius>15m |
| 4.Response speed: 30m/s |
| 5.It has the functions of signal picked up memories. |
| 6.It has the functions of intelligent decisions, Able to accurately identify the jamming signal, To eliminate interference effectively. |
| 7.It Using dry battery, continuous working time is more than 72 hours. |
8.Operating mode: Suspenders type
|
