ASME Basket Filter
- WS
- Shenyang,Liaoning,China
- within the required time
- supply qualified goods within required time
- Information
Basket Filter/strainer
Main Filter Separator Type which we can design and fabricate | ●ASME THREE STATE FILTER SEPARATOR http://www.wsyqworld.com/product/asme-three-state-filter-separator |
| ●ASME GAS FILTER SEPARATOR http://www.wsyqworld.com/product/asme-gas-filter-separator | |
| ●ASME BASKET FILTER | |
| ●ASME FILTER SEPARATOR SKID http://www.wsyqworld.com/product/asme-filter-separator-skid | |
| ●ASME FILTERING CYCLONE SEPARATOR http://www.wsyqworld.com/product/asme-filtering-cyclone-separator | |
| ●ASME AIR ELIMINATOR http://www.wsyqworld.com/product/asme-air-eliminator |

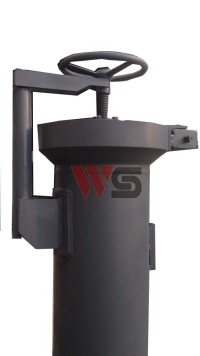

1)Basket Strainer with quick opening closure type
Structure &Pictures
Application: Oil. Gas ,Water,Solids Separation
1.Important Tips
Quick Opening Closure
Separators can be equipped with quick opening closure to facilitate full access to the filter elements for replacing and cleaning. Quick opening closure provides a practical solution with assures safety access to the filter and allows to manage the large size for opening and closing in only one minute. Each clsoure is widly tested after manufacturing to give assurance of maximun reliability through time. Quick opening closure is one of the most necessary parts, we can produce various kinds of Quick opening closure according to the different size and pressure. Our quick opening closure has acquired the national patent(patent NO.is 03210870.2).normally, opening the closure it always need 2-4 workers to open with pliers at least 5-7 hours. Our quick opening closure opens within one minutes, it saves labour and enough time. |
2)Basket Strainer/Filter with Flanged cover type
General Introduction
Basket Filter used for oil or other liquid pipeline for filtering solids inside. The filtering size should be larger than 2 to3 times pipe diameter.
The filtering size higher than Y type and also T type. The high accuracy of filtration make its the best filtering device.
The filter screen structure different with other screens,it looks like basket ,so we named it Basket Filter
General Specification
DN | in | D1 | L | H | H1 | H2 | General Filtering area m2 |
25 | 1" | 76 | 180 | 260 | 300 | 160 | 0.0162 |
40 | 11/2 | 108 | 260 | 300 | 320 | 170 | 0.0315 |
50 | 2" | 108 | 260 | 300 | 320 | 170 | 0.0315 |
65 | 21/2 | 133 | 330 | 360 | 380 | 210 | 0.0416 |
80 | 3" | 159 | 340 | 400 | 420 | 250 | 0.0590 |
100 | 4" | 219 | 400 | 470 | 500 | 300 | 0.1077 |
125 | 5" | 273 | 480 | 550 | 580 | 360 | 0.1759 |
150 | 6" | 273 | 500 | 630 | 650 | 420 | 0.2910 |
200 | 8" | 325 | 560 | 780 | 800 | 530 | 0.4076 |
250 | 10" | 426 | 660 | 930 | 950 | 640 | 0.5017 |
300 | 12 | 478 | 750 | 1200 | 1250 | 840 | 0.6800 |
Main Technical Data
1.Shell Material: C.S; S.S(SUS304、SUS304L、SUS316、SUS316L), PTFE.
2.Filtering material:S.S
3.Sealing Material:Oil resistant asbestos rubber, metal winding gasket, ptfe
4.Working Temperature:C.S:-40~380℃; S.S:-80~450℃.
Application
1, petrochemical production of weak corrosive materials, such as: water, ammonia, oil, hydrocarbons and so on.
2, chemical production in the corfu materials, such as: caustic soda, soda ash, concentrated, dilute sulfuric acid, carbonic acid, acetic acid, ester acid.
3, the cooling of low-temperature materials, such as: liquid methane, liquid ammonia, liquid oxygen and various refrigerant.
4, light industry food, pharmaceutical production in the health requirements of the material, such as: beer, beverages, dairy products, grain pulp and other pharmaceutical supplies.
Connection type
flange connection, threaded connection, welding
Flange Standard
GB、HG、SH、HGJ、JB、ANSL、JIS etc standard .
We can provide according to customer requirements.
Fabrication and Inspection Standard
ASME standard or as per customer required
| FAQ |
| 1.What the size supports? |
| we are the non-standard pressure vessel manufacturer, we can customize any specification as your drawing,general information |
| 2.What the standard of fabrication of pressure vessel? |
| ASME,API or any other specific appointed standard |
| 3.What the regular payment methods? |
| we support TT,Letter of Credit |
| 4.What the regular Package? |
| Export wooden case Package |
| 5.Which kinds of shipment supports? |
| By sea, airplane or International express |
| 6.Working Time? |
| we are working from Monday to Friday 8:00AM to 16:30PM |
| Company Information | ||||||||
| Shenyang WenSheng Instrument Equipment Co., Ltd.is the Joint-stock collection of production and scientific research in one .we are the professional manufacturing enterprises of oil and natural gas pipeline (non-standard) equipment more than 15 years. | ||||||||
| we focus on petroleum, natural gas pipeline (non-standard) equipment research, development and production in decade years. We provide our customers in the worldwide with full set of pigging equipment for long distance transferring pipeline;monolithic insulation joint, gas Distribution and filter separation & cyclone separation equipments and the perfect Pre/After Sales services include business consulting, equipment configuration, installation debugging, technical training , spare parts supply and expert guidance etc. | ||||||||
| our products are much more perfect with the accumulation of experience and the feedback from customers in the process of the usage of equipment and the improvement of technique after hard technical research and study .The main technical Index and performance have reached to the advanced domestic and international standard. | ||||||||
| Our products won several national patents like LSM wheel-paddle Quick Opening Closure (National patent number: zl 2016 2 0079375.6), Band locking Quick Opening Closure(National patent number: zl2016 2 1187766.6),Electric Automatic Quick Opening Closure (National patent number: zl2016 2 1191754.0) the supporting wheel pipeline polyurethane cleaning pig (National patent number: zl2016 2 1189950.4) , and the reducing pipeline cleaning pig (National patent number: zl2016 2 1187652.1).,Pig Signaller removal under pressure(National patent number:zl2016 2 1172897.7) etc. | ||||||||
| Our company have got ASME U Certificate( Certificate No.:55405);ISO9001:2000 Certificate; ISO14001:2000 Certificate and ISO OHSAS 18001:2007) etc..... | ||||||||
