ASME Three State Filter Separator

●ASME GAS FILTER SEPARATOR

http://www.wsyqworld.com/product/asme-gas-filter-separator

●ASME BASKET FILTER

http://www.wsyqworld.com/product/asme-basket-filter

●ASME FILTER SEPARATOR SKID

http://www.wsyqworld.com/product/asme-filter-separator-skid

●ASME FILTERING CYCLONE SEPARATOR

http://www.wsyqworld.com/product/asme-filtering-cyclone-separator

●ASME AIR ELIMINATOR

http://www.wsyqworld.com/product/asme-air-eliminator

oil, gas, water efficient filter separator is designed specially for oil, gas, water gathering and transportation.

its good for the separation of liquid,solid in the natural gas makes its the essential spearate equipment which apply for the area of nature gas gathering and transportation station,pressure gas station,pigging station and gas distributing station.

Gas-liquid three-phase separator is one of the most commonly used equipment in the development and production process of oil fields. A "solid, liquid, and gas" three-phase separator installed in

the oil and gas wells under the pump.

Filter separator make use of the function that filtration medium hold up solid particles or liquid in the gas

to realize the separation purpose.filter spearator can separate the micro solid particles and liquid fogdrop with high separation accuracy.

choosing different filtrate medium with reasonable structure and polyarity combination.

separation accuracy 0.1-10μm.separation accuracy achieve to 99.9% and stable working performance.

its one of the highest efficiency and most stable operation separation methods.

Filter separator widely used in the area of chemical,oil,generate electricity and water supply ststem.

our filter separator have the large size filtration , high filtration efficiency ,small lose pressure and long working life features etc. we cooperate with the most advanced research institutes in china in the development of filter separator,complement each advantages leads our products are popular and good reputation in the home and abroad.

2.Application

3.Three state Filter separator Type &Drawing

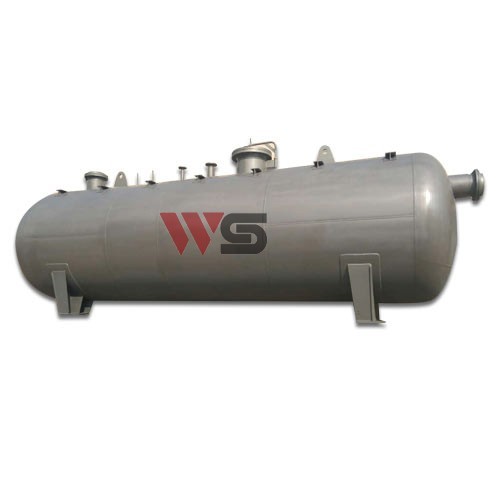

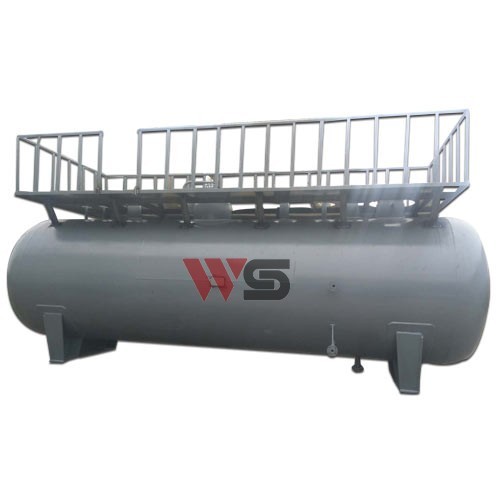

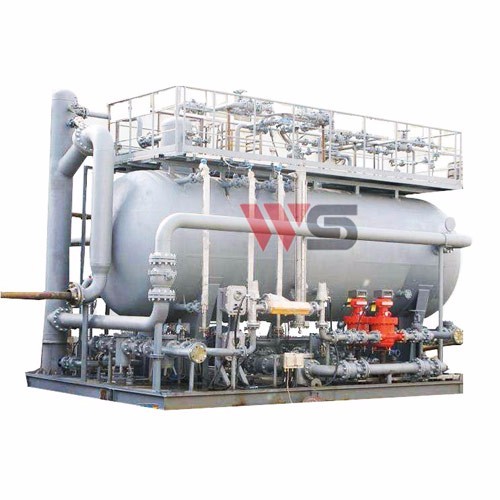

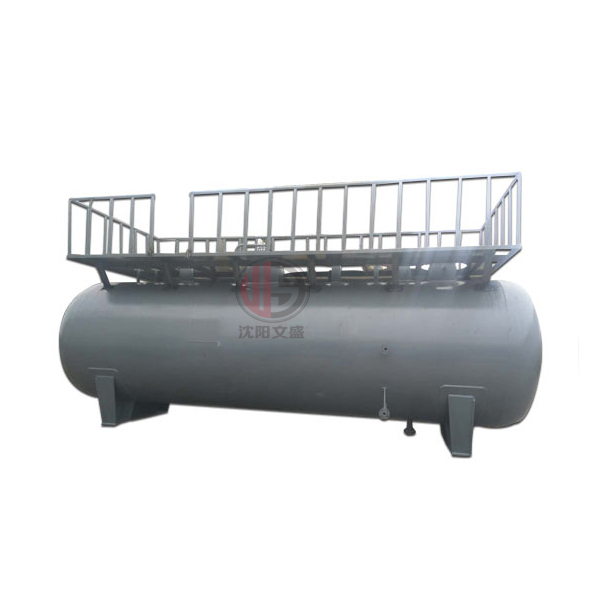

1.Horizontal Three-Phase Separator

Internal structure: The gas-liquid mixture enters the separator through the gas-liquid inlet for basic phase separation.

 The gas enters the gas channel and settles through the rectifier and gravity to separate the droplets.

The liquid enters the liquid space to separate the bubbles and the oil flows upwards. The water flows downwards.

 The flow is separated and the gas flows out of the gas outlet after removing the small droplets from the mist catcher before leaving the separator. Oil flows from the top through the overflow baffle into the oil sump and out of the oil outlet.

Water flows through the overflow baffle and enters the water tank. Outflow from the outlet.

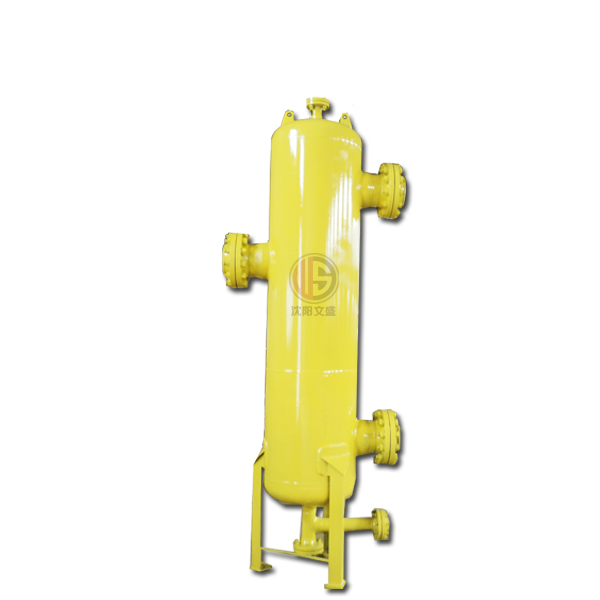

Internal structure:

After the gas-liquid mixture enters the separator through the gas-liquid inlet, the basic phase separation is accomplished through the

abrupt changes in the flow velocity and flow direction. The gas flows upwards in the gas channel and the droplets are separated by gravity.

The liquid enters the oil-water interface through the downcomer, and the bubbles and oil flow upward. Flow, water flow down to be separated

Drain /Safety valve

Ladder

Vane/wiremesh mist Eliminator

Saddles

Pressure gauge

Level Indicator

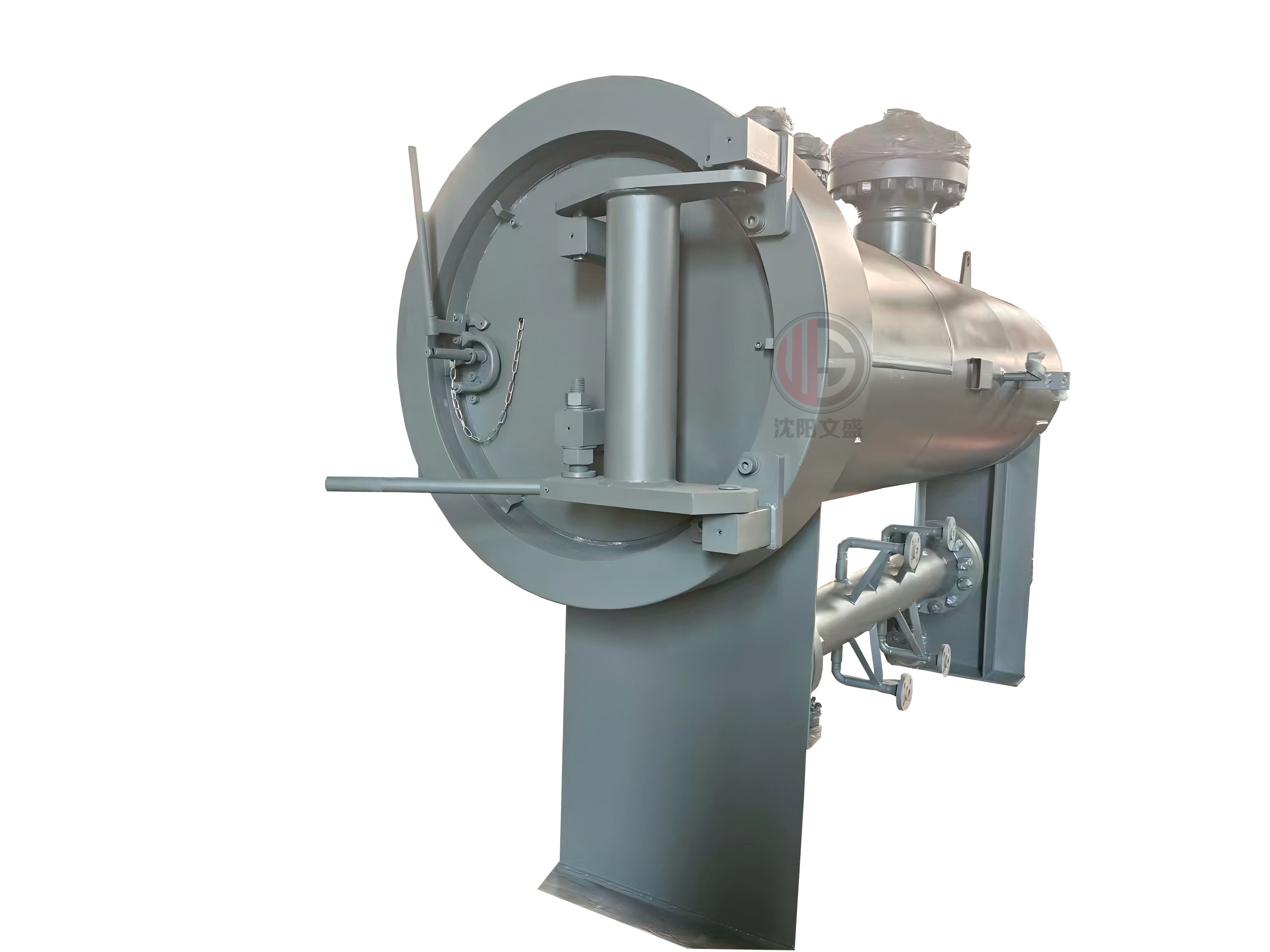

Quick Opening Closure. Separators can be equipped with quick opening closure to facilitate full access to the filter elements for replacing and cleaning. Quick opening closure provides a practical solution with assures safety access to the filter and allows to manage the large size for opening and closing in only one minute. each clsoure is widly tested after manufacturing to give assurance of maximun reliability through time.

Quick opening closure is one of the most necessary parts, we can produce various kinds of

Quick opening closure according to the different size and pressure.

our quick opening closure has acquired the national patent(patent NO.is 03210870.2).normally, opening the closure it always need 2-4 workers to open with pliers at least 5-7 hours.our quick opening closure opens within one minutes, it saves labour and enough time.

6.Features &Benfits

7.Installation and Maintenance

After finished the hydrotest its essential to open filter separator ,empty the liquid inside

the shell and wipe clean or airing the filter separator innner and sealing parts then paint

Glycerine as to lubrication in avoid of the rust. the rust happend can take damage for the equipment and trouble for engineering.
