ASME Filter Separator Skid
Customized as per client's data sheet and specification
ASME Code
- WS
- Shenyang,Liaoning,China
- within the required time
- supply qualified goods within required time
- Information
Main Filter Separator Type which we can design and fabricate | ASME THREE STATE SEPARATOR |
| ASME GAS FILTER SEPARATOR http://www.wsyqworld.com/product/asme-gas-separator | |
| ASME BASKET FILTER http://www.wsyqworld.com/product/asme-basket-filter | |
| ASME FILTER SEPARATOR SKID | |
| ASME FILTERING CYCLONE SEPARATOR http://www.wsyqworld.com/product/asme-filtering-cyclone-separator | |
| ASME AIR ELIMINATOR http://www.wsyqworld.com/product/asme-air-eliminator |
ASME Filter separator skid
| 1.Define and working principle of Filter Separator &Filter separator Skid | |||||
oil, gas, water efficient filter separator is designed specially for oil, gas, water gathering and transportation. its good for the separation of liquid,solid in the natural gas makes its the essential spearate equipment which apply for the area of nature gas gathering and transportation station,pressure gas station,pigging station and gas distributing station. Filter separator make use of the function that filtration medium hold up solid particles or liquid in the gas to realize the separation purpose. filter spearator can separate the micro solid particles and liquid fogdrop with high separation accuracy. choosing different filtrate medium with reasonable structure and polyarity combination. separation accuracy 0.1-10μm.separation accuracy achieve to 99.9% and stable working performance. its one of the highest efficiency and most stable operation separation methods. | |||||
Filter separator Skid widely used in the area of chemical,oil,generate electricity and water supply ststem. Our filter separator have the large size filtration , high filtration efficiency ,small lose pressure and long working life features etc. we cooperate with the most advanced research institutes in china in the development of filter separator,complement each advantages leads our products are popular and good reputation in the home and abroad. | |||||
2.Application | |||||
| 1.gas gathering and transportation station,pressure gas station,pigging station and gas distributing station | |||||
| 2.Protection of mainline transmission systems | |||||
3.The filter separator skids Suitable for where is a lack of construction resources, or high assembly accuracy required or high construction cost projects | |||||
3.Filter separator Skid Type：Structure&Pictures | |||||

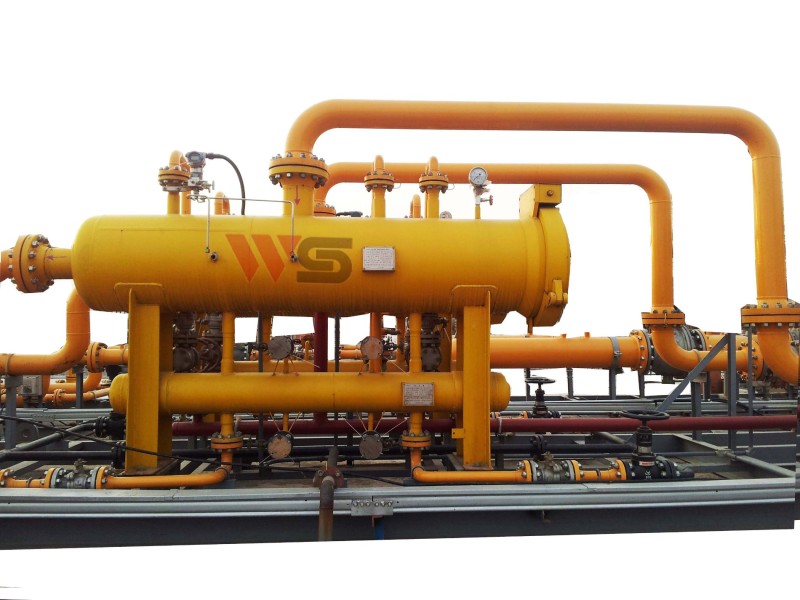

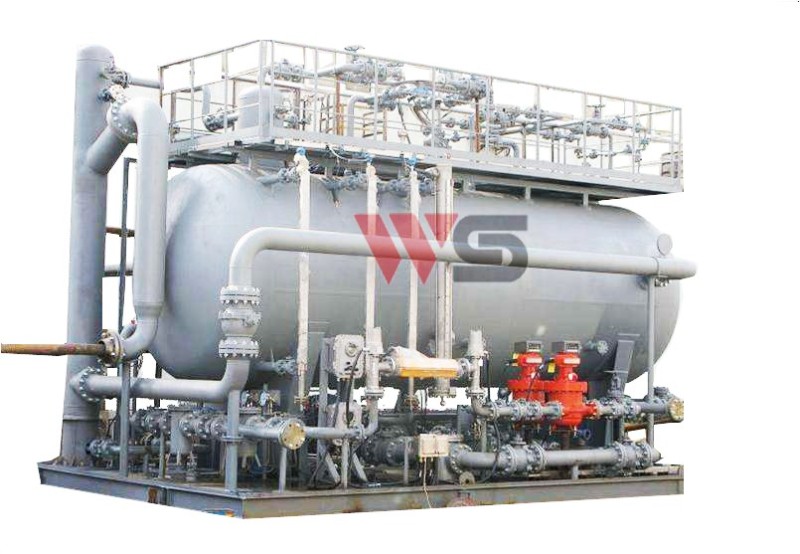

1.Horizontal Type
| |||||

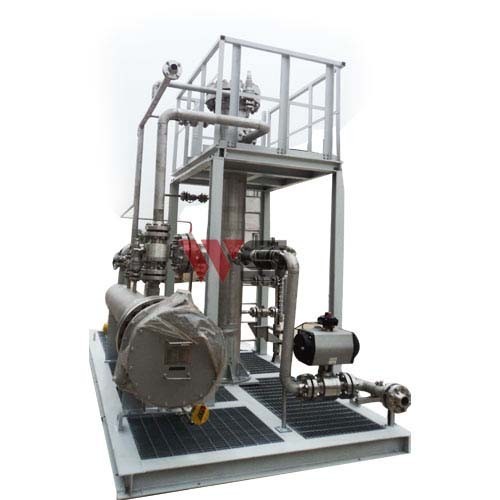

2.Vertical Type The skid mounted integrated Filter separator device that integrates the original heating, oil-gas-water-sand four-phase separation, oil-gas mixed-transmission, and automatic control. It is used to separate, heat, and pressurize oil-gas water that is used in transfer stations or transfer operations. Transportation, as well as the need to meet the double-pipe mixed water transport process. Please see the following filter separator pictures
| |||||
| 4.optional choices | |||||
Quick opening closure Valve Skid Ladder and platform Instruments including pressure gauge etc. |
5.Advantages of Filter separator skid Type 1. Easy to install, Easy to migrate: skid-mounted filter separator, assembly are completed in the factory. Less work of on-site installation and only need to complete the interface pipe and external electrical connection can work; Due to functional components integrated in a whole base , you can easily migrate as a whole. 2.Compact design, small footprint: skid-mounted filter separator. The compact structure reduce the use of traditional installation methods. 3.At current oilfield transfer stations or oil transfer stations, traditional crude oil treatment processes require investment in heating furnaces, separators, storage tanks, pump rooms and other facilities, occupying a large area and high investment costs. For the current fiercely competitive market environment, it is difficult to reduce the production operating costs by using the original construction model. The outfitting integrated device is an integrated device, which has a good application prospect both in the renovation project of the old oil field and in the new production capacity project. The device can reduce operating costs by 70% compared to traditional processes. |
| Company Information | ||||||||
| Shenyang WenSheng Instrument Equipment Co., Ltd.is the Joint-stock collection of production and scientific research in one .we are the professional manufacturing enterprises of oil and natural gas pipeline (non-standard) equipment more than 15 years. | ||||||||
| we focus on petroleum, natural gas pipeline (non-standard) equipment research, development and production in decade years. We provide our customers in the worldwide with full set of pigging equipment for long distance transferring pipeline;monolithic insulation joint, gas Distribution and filter separation & cyclone separation equipments and the perfect Pre/After Sales services include business consulting, equipment configuration, installation debugging, technical training , spare parts supply and expert guidance etc. | ||||||||
| our products are much more perfect with the accumulation of experience and the feedback from customers in the process of the usage of equipment and the improvement of technique after hard technical research and study .The main technical Index and performance have reached to the advanced domestic and international standard. | ||||||||
| Our products won several national patents like LSM wheel-paddle Quick Opening Closure (National patent number: zl 2016 2 0079375.6), Band locking Quick Opening Closure(National patent number: zl2016 2 1187766.6),Electric Automatic Quick Opening Closure (National patent number: zl2016 2 1191754.0) the supporting wheel pipeline polyurethane cleaning pig (National patent number: zl2016 2 1189950.4) , and the reducing pipeline cleaning pig (National patent number: zl2016 2 1187652.1).,Pig Signaller removal under pressure(National patent number:zl2016 2 1172897.7) etc. | ||||||||
| Our company have got ASME U Certificate( Certificate No.:55405);ISO9001:2000 Certificate; ISO14001:2000 Certificate and ISO OHSAS 18001:2007) etc..... | ||||||||
